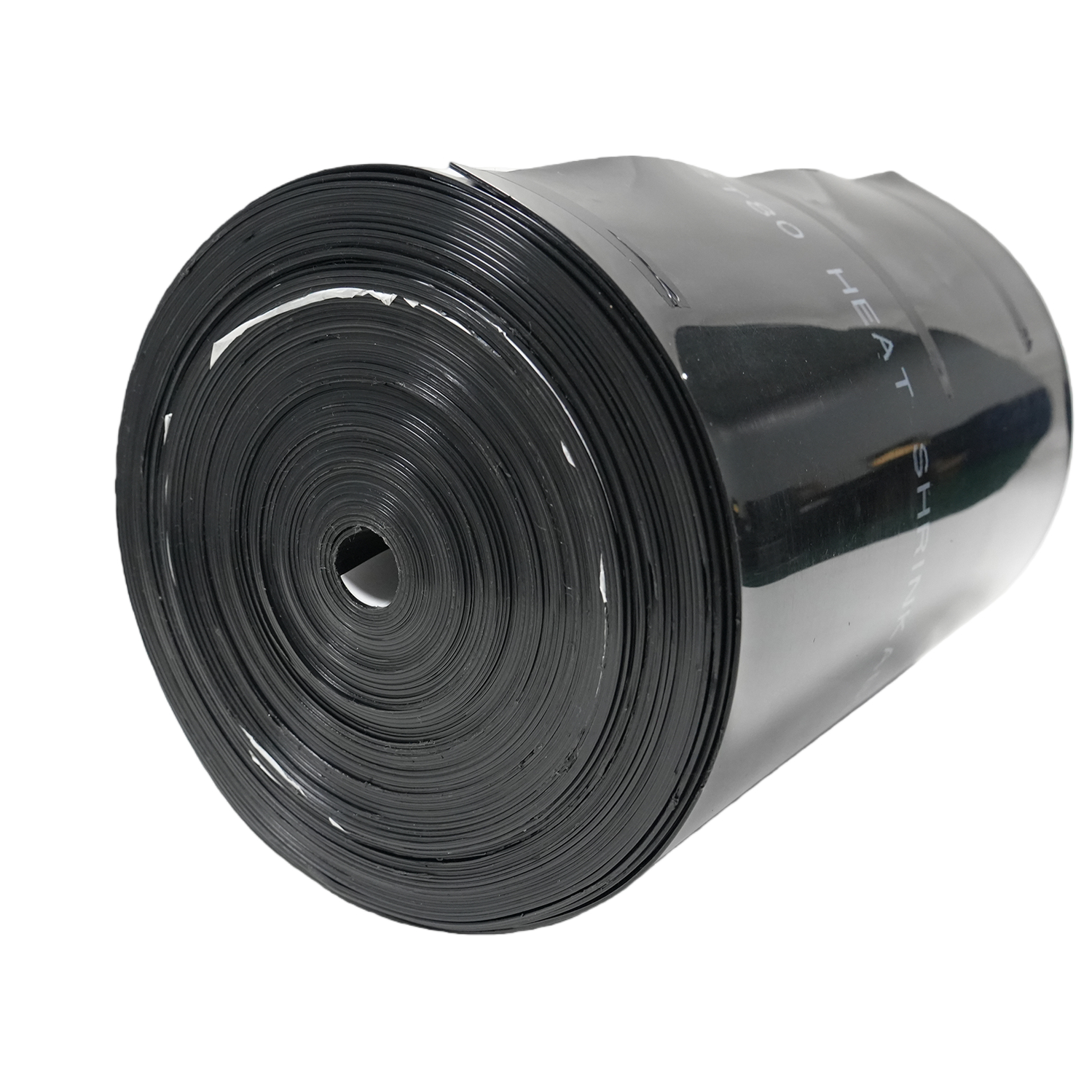

2PE Low Preheat Heat-Shrink Sleeve Visco-Elastic Adhesive

2PE Low Preheat Heat-Shrink Sleeve Visco-Elastic Adhesive

Get Latest Price

Min. Order:	1
Transportation:	Ocean
Port:	Qingdao

Option:

450mm

Contact Now

Product Description

Product Attributes

Model No.: 2LPEHSS

Brand: FOREVER

Origin: China

Certification: ISO

Place Of Origin: China

Processing Service: Moulding

Operate Temperature: HTPL 65

Width: 300mm,350mm,450mm,500mm

Thickness: 2.0mm,2.2mm,2.5mm

Type: open type with closure patch

Color: Black

Applications: Oil gas pipeline

Usage: Field joint coating anticorrosion

Backing Materials: Cross linked PE backing

Key Point: heat shrink

Standard: ISO21809

Packaging & Delivery

Package Type	:	Rolls+carton+pallet
Picture Example	:

The file is encrypted. Please fill in the following information to continue accessing it

peel strength test



Product Description

Visco-elastic Low Preheat Sealant Wrap-around Girth Weld Sleeve

Construction: Two-layer system:

First layer: Visco-elastic low preheat sealant adhesive.

Second layer: Radiation cross-linked, high density polyethylene with Permanent Change Indicator

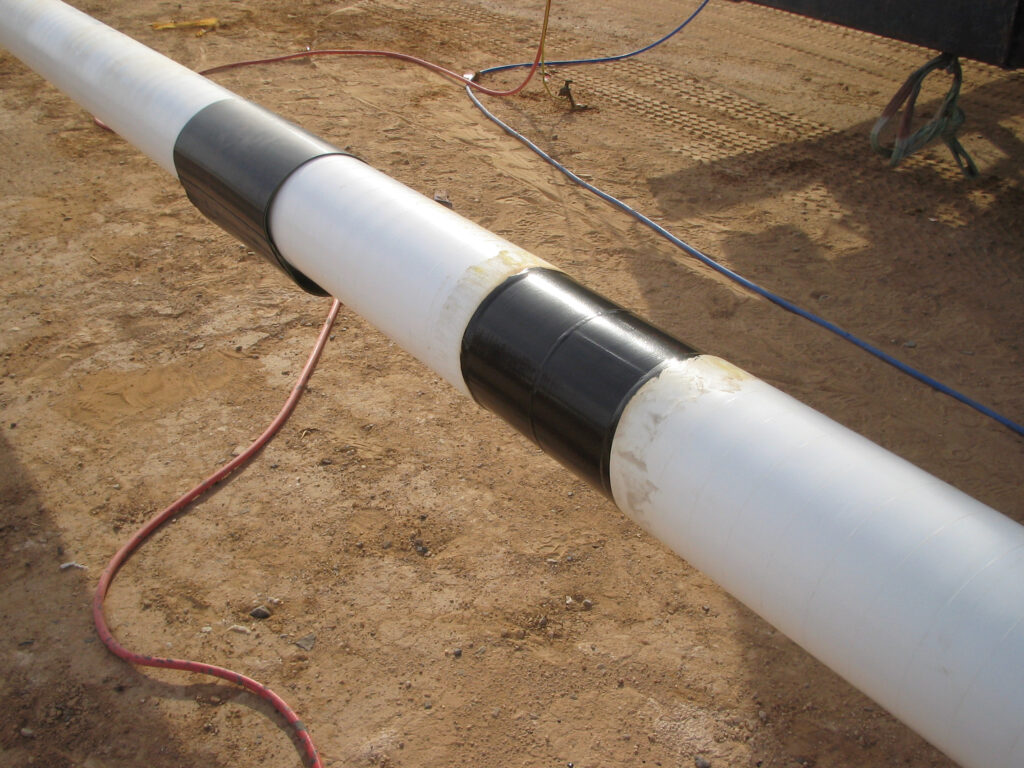

2LPE HSS wrap-around heat-shrinkable sleeve, ready-to-fit assembly for the corrosion protection of field girth weld joints in distribution and transmission networks, for

use especially in low shear or low stress environments and in moderate climates. (Above pipe diameter DN500 (20") in high shear and high stress environments,

HTLP60 is recommended or contact a Tyco Adhesives representative.

2LPE HSS wrap-around heat-shrinkable sleeve is compatible with standard pipe coatings. 2LPE HSS wrap-around heat-shrinkable sleeve can also be used for coating bare, replacement pipe sections and large

radius bends. The system is designed to be applied with minimum preheating of the pipe

Property	Typical Value	Test Method
Peel to PE	60N/cm@23℃	ISO 21809
Impact Resistance	＞ 15 J	ISO 21809

Visco-Elastic Low Preheat Wrap-Around Girth Weld Sleeve is new product for filed joints coatings, this kinds of Heat Shrink Sleeves has speical adhesive, it is not hot melt adheisve, not mastic adhesive. No need to use Epoxy Primer.
