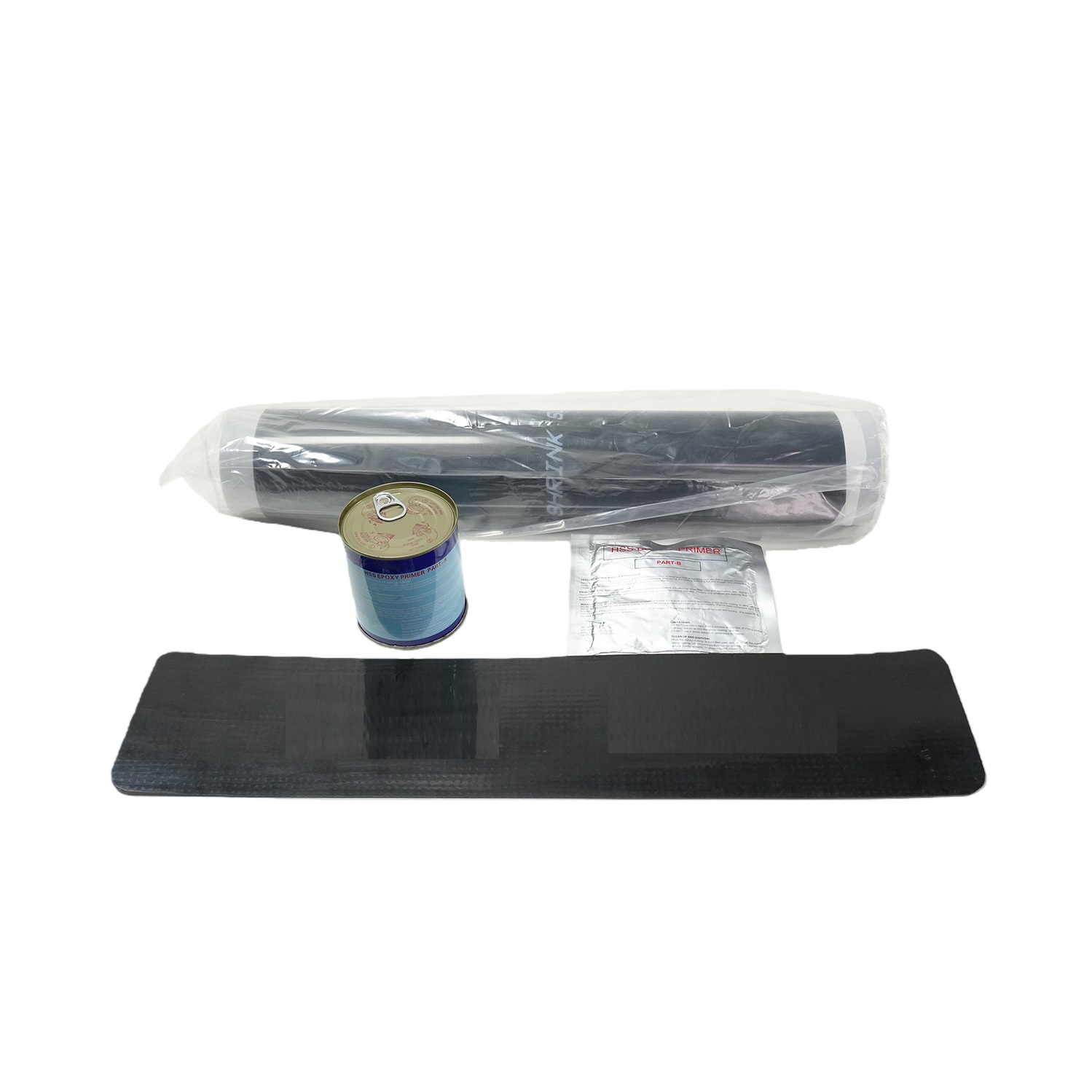

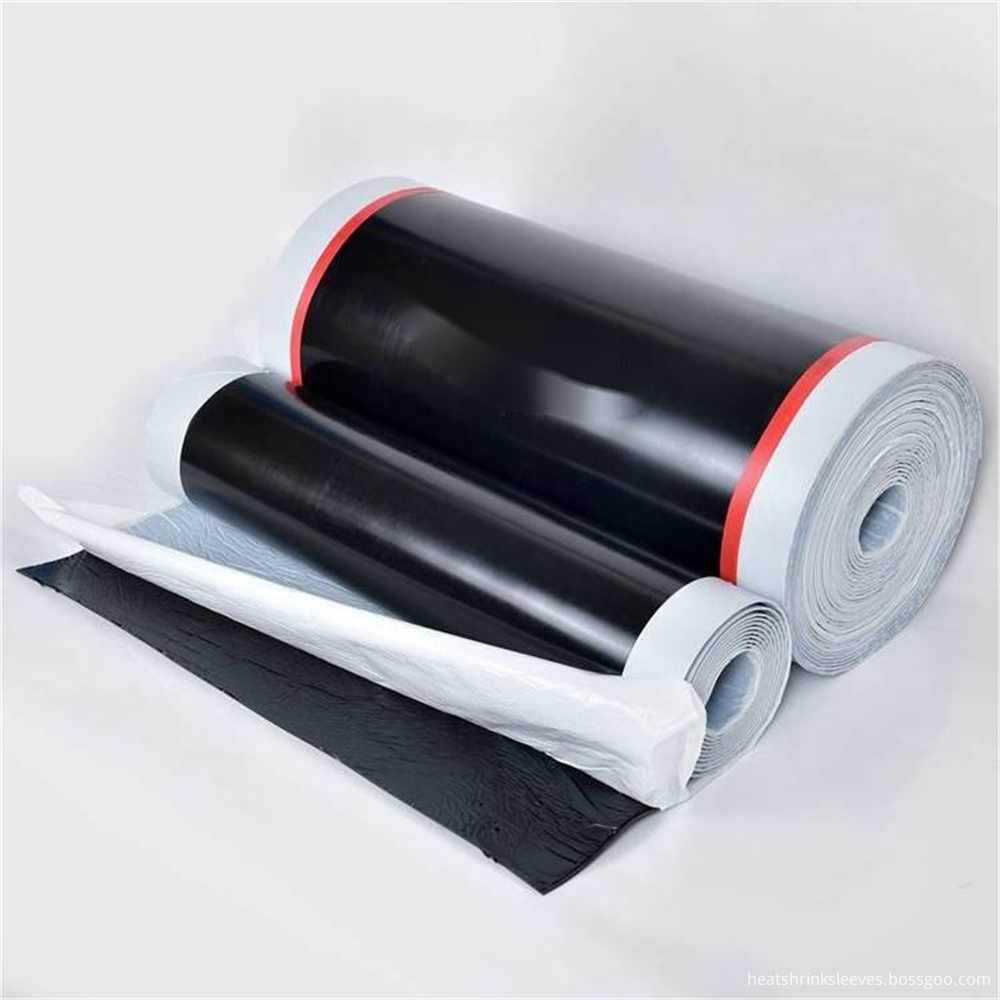

Open Cut Polypropylene three-layer heat shrink sleeve

Open Cut Polypropylene three-layer heat shrink sleeve

Get Latest Price

Min. Order:	1
Transportation:	Ocean
Port:	shenzhen

Contact Now

Product Description

Product Attributes

Model No.: 3LPP

Brand: Forever

Origin: China

Certification: ISO

Place Of Origin: China

Processing Service: Cutting

Operate Temperature: 110

Width: 450mm,500mm

Thickness: 2.5mm 3.0mm

Layer: 3LPP

Color: Black

Applications: Oil gas pipeline

Usage: Field joint coating anticorrosion

Key Point: heat shrink

Standard: ISO21809

Packaging & Delivery

Package Type	:	pallets
Picture Example	:

The file is encrypted. Please fill in the following information to continue accessing it

Waiting for shipment to Middle east



Product Description

Open Cut Polypropylene Three-Layer Heat Shrink Sleeve is a specialized protective coating system used primarily for the repair and protection of pipelines, especially in underground or buried environments. It is commonly used during open-cut pipeline construction or rehabilitation projects where sections of pipe are exposed and require re-coating or sealing.

Here’s a detailed breakdown of what this product entails:

A three-layer heat shrink sleevemade from polypropylene (PP)—a thermoplastic polymer known for its durability, chemical resistance, and excellent mechanical properties. The open cut designation means it's designed for use when the pipeline is already exposed

Item	Test items	Test standard	Unit	3LPP 65
Configuration	Operating Temperature	-	℃	Up to 65
	Max installation temperature		℃	75
	Liquid epoxy (heat cured)	ASTM D 1000	μm	≥200
	Sleeve width	ASTM D 1000	mm	150-600
	Total thickness	ASTM D 1000	mm	2.0-3.0
	Indentation Resistance	EN12068		Pass
Adhesive	Melting point	ASTM D3418	℃	100-105
	Lap Shear, at 23±2℃	EN 12068	N/cm2	≥15 N
Backing (PP)	Tensile Strength, at 23±2℃	ASTM D638	MPa	≥28
	Elongation, at 23±2℃	ASTM D638	%	≥425
	Hardness	ISO 868	Shore D	≥.65
	UV Resistance	EN12068,Annex F ISO 4892-2 DIN 30670	-	According to standard
	Volume Resisitivity	ASTM D 257	Ω.m	2.0X10¹⁷
	Impact strength	EN 12068	J	≥20
