SICHUAN FOREVER RADIATION TECHNOLOGY CO.,LTD
Model No.: Epoxy
Brand: Forever
Origin: China
Certification: ISO
Place Of Origin: China
Main Ingredient: Epoxy
Application Field: Building Coating, Rubber Coating
Instructions: Brush
Status: Liquid Coating
Operate Temperature: 120 ℃
Materials: ：A&B Layer： 3PE
Solid：: 99%
Function：: Anticorrosion
Color: Black
Applications: Oil gas pipelines,onshore,offshore,
Usage: Field joint coating anticorrosion
Key Point: Epoxy
Dry Time: 30Min
Standard: DIN30672
| Selling Units | : | Kilogram |
| Package Type | : | Rolls+carton+pallet |
| Picture Example | : |
|
| Download | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
Epoxy Primer is a specially formulated 100% volume solids (solventless) two component epoxy. Typically used in a 3 layer coating system for superior corrosion protection of field welded joints of steel pipes or as an overcoat in multi-layer sleeve systems, this product provides the assurance that the pipe is fully protected and it will not be displaced and exposed to corrosive contaminants during the aligning & shrinking stages of the sleeve installation.

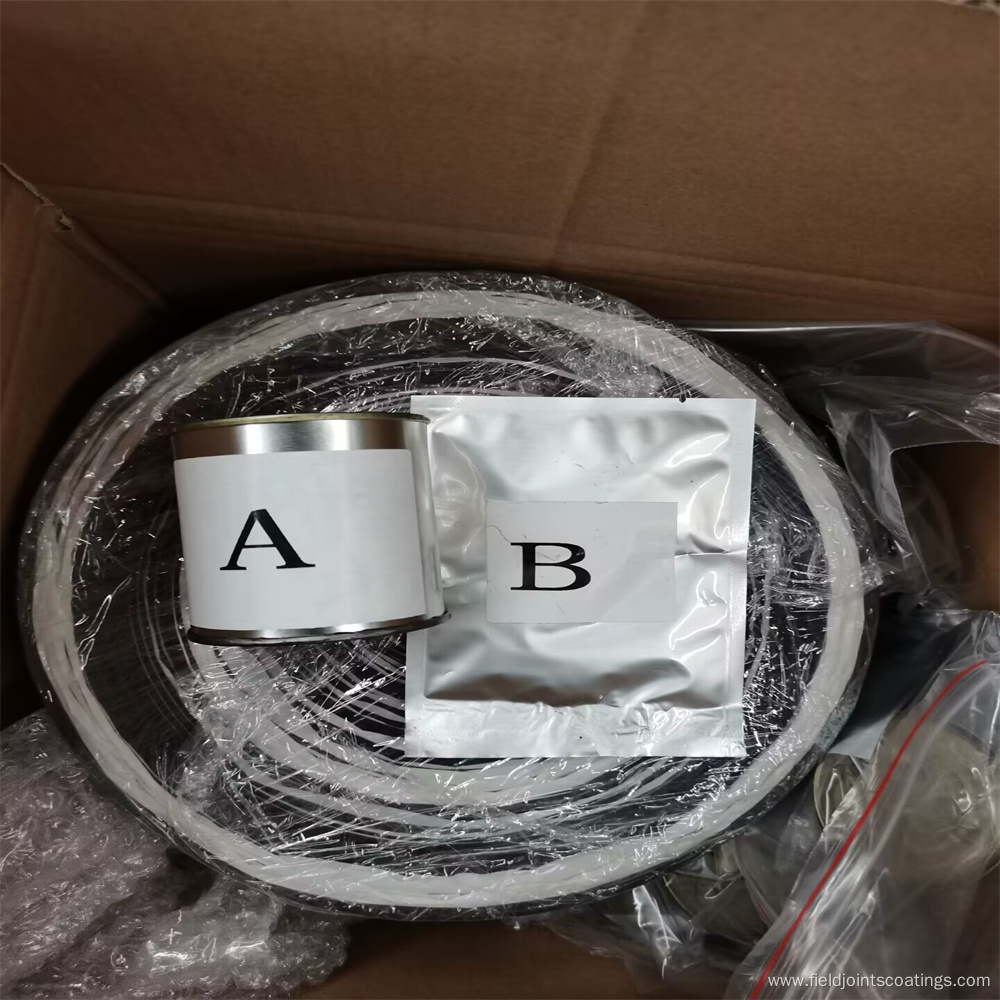

Two-part solvent-free liquid epoxy co coating is coated on the surface of metal pipe before installing heat-shrinkable sleeves (tubes). The epoxy coating is solvent-free and can cure at room temperature. After curing, the coating surface is flat and smooth. The products are contained in the metallic can and bear operation tools.
Technical data sheet
| Item | Unit | Technical requirements |
| Thickness | μm | ≥150 |
| Adhesive Fore | Grade | ≤2 |
| 48h cathode peel | mm | ≤10 |
| Impact Strength（1.5J， -30℃） |
| No pinhole |
| Impact strength (room temperature) | J | ≥8 |
| Bend Resistance | 1o | No cracks |
| Bulk electric resistivity | Ω.m | ≥1.0×1011 |
| Dielectric strength | MV/m | ≥30 |
In a nutshell,Heat Shrinkable Sleeves covered
3LPE Heat Shrink Sleeves，2PE Heat Shrink Tape，3LPP Wrap Around Sleeve
HDD Heat Shrink Wrap Sleeves,Shrinkable Tape Closure Patch
