SICHUAN FOREVER RADIATION TECHNOLOGY CO.,LTD
Model No.: Visco elastic
Brand: Forever
Origin: China
Certification: ISO
Place Of Origin: China
Plastic Molding Process Type: Extruding
Processing Service: Moulding
Color: Green
Width: 100mm，150mm
Length: 10M
Thickness: 1.8mm
Application: Corrosion Control Of Pipe Fitting
Usage: ANTI CORROSION
Similar Brand: Stopa
Standard: ISO 21809
Key Point: corrosion proection
Materials: Butyl
| Selling Units | : | Roll |
| Package Type | : | Rolls+carton+pallet |
| Picture Example | : |
|
| Download | : |
|
The file is encrypted. Please fill in the following information to continue accessing it

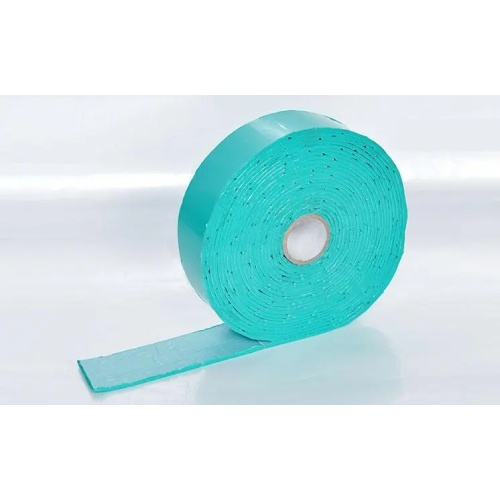

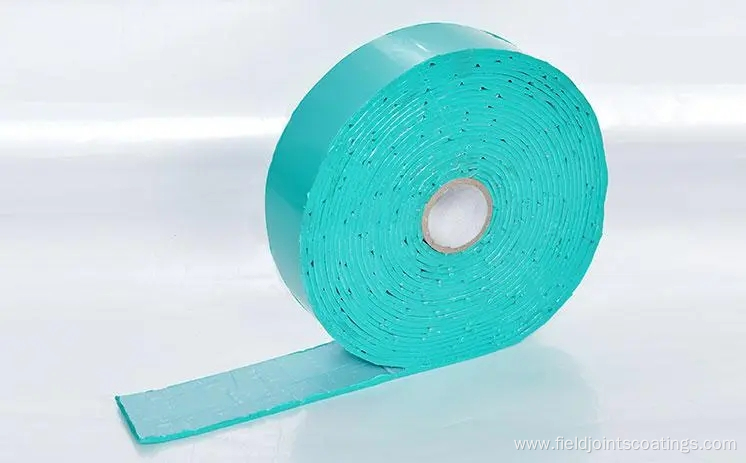

1.5mm /1.8 Mm /2.0 mm Thick Viscoelastic Coating Anti Corrosion Primerless Tape For Pipe Flange
Description:
Visco-elastic anti corrosion tape is a new-type high-performance visco-elastic polyolefin material. It preserves the dual characteristics of the solid adhesive material and liquid adhesive material. In normal conditions, its visco-elastic property will keep above 30 years. This product has excellent visco-elastic, sound water-proof and easy-used characters.
Visco-elastic anti corrosion tape ------product feature:
It can be use in the surface of steel, PE, PP, FBE etc. directly.
Completely compatible to other coating (three-layer PE, PVC,CTE-coating, asphaltum)
Excellent chemical resistance and sealing, it is completely water-proof.
It can be self-repair for light defects.

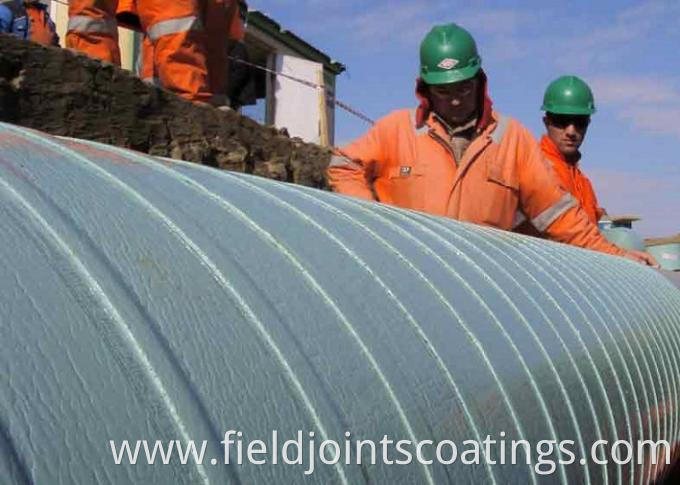

It is useful to pipeline joint anticorrosion and repair, also for elbow pipe, pipe bending, three joints and insulated flange.
Widely applicable temperature (it can be installed between -45°C~70°C).
The Construction Quality can be handled. It seldom affects by the environment and the operator.
It can be stored in long time and the material it adopts is eco-friendly.
Performance of Visco-elastic coatings
| Item | Test method | Performance |
| color | Visual estimation | green |
| thickness | ASTM D 1000 | ≥1.8mm |
| application temperature range | ----- | -45~70°C |
| Specific Insulation Resistance | EN 12068 | ≥108Ω.m2 |
| Dielectric strength | DIN 53481 | ≥10kv/mm |
|
peel strength @ (23 ℃) to PE to Steel to FBE |
ISO 21809-3 |
4N/cm 5N/cm 6N/cm |
| Lap Shear @ 23℃ | ISO 21809-3 | 0.04N/mm2 |
| Water Absorption | ASTM D 570 | 0.03% |
| Impact Resistance | EN 12068 | ＞ 15J |
| Cathodic Disbandment | EN 12068 | ≤20 mm-rad |
| Drip Resistance @85 ℃ for 72 hours | ----- | No dripping |
| Chemical Resistance 10% HCL,10%Na OH, 3%NaCL for 90 days | ----- | Pass |
| Hot water immersion @60℃ for 120 days | ---- | Pass |
Visco-elastic Anticorrosive Paste
| Item | Test Method | Performance |
| color | Visual estimation | green |
| Density | NEN1833 | 1.4-1.6 g/cm³ |
| Application Temperature Range | - | -45~70°C |
| Elongation at break | ASTM D1000 | >100% |
| Water absorption | ASTM D570 | ≤0.03 % |
| Volume resistivity(Ω/m2) | EN12068 | ≥1*108 |
| salt spray test ( 5%, 720h) | ASTM B117 | No rust |
In a nutshell,Visco-Elastic Coating Materials covered Visco-Elastic Tape,Visco-Elastic Mastic,PVC Outerwrap Tape,Polypropylene Anticorrosion Tape,High Temperature Visco Tape
