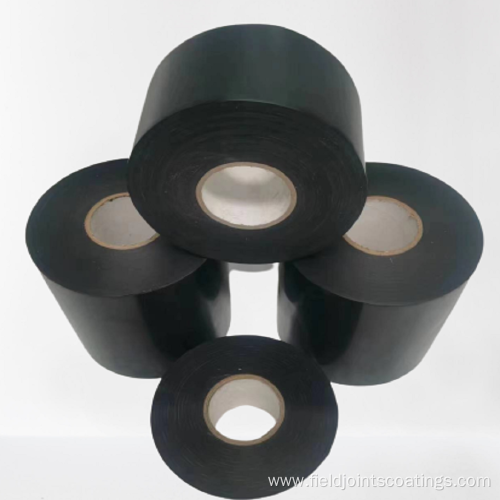

PVC Outer wrap tape for pipeline
PVC Outer wrap tape for pipeline
PVC Outer wrap tape for pipeline
PVC Outer wrap tape for pipeline
PVC Outer wrap tape for pipeline
PVC Outer wrap tape for pipeline
PVC Outer wrap tape for pipeline

PVC Outer wrap tape for pipeline

$2≥500Roll

Payment Type:L/C,T/T
Incoterm:FOB,CFR
Min. Order:500 Roll
Transportation:Ocean,Land
Port: Shanghai , Shenzhen,Qingdao
Product Attributes

Model No.Outer wrap

BrandForever

Origin China

CertificationISO

Place Of OriginChina

Plastic Molding Process TypeExtruding

Processing ServiceCutting

Film MaterialsPVC

AdhesiveAnticorrosion adhesive

Thickness0.4mm,0.5mm,0.6mm

Width50mm,100mm,150mm

ColorBlack

FunctionOuter protection

ApplicationPipes and fittings

Elongation200%

Key PointPuter protection tape

StandardASTM D1000

Packaging & Delivery
Selling Units : Roll
Package Type : Rolls+carton+pallet
Picture Example :
Download :

The file is encrypted. Please fill in the following information to continue accessing it

cold applied tape for anticorrosion and outer prot
Product Description

PVC Outer  wrap  tape

Outer  wrap  tape  PVC  is  engineered  to achieve a complete bond to the inner layer tape,  providing  maximum  handling  and in-service    protection    for    the    coating system.

PVC covering tape is a unique viscous-elastic non crystalline a-polar polyolefin for the protection of shaped and non-shaped substrates. Corrosion protection tape with covering tape offers the pipeline industry an unrivaled technology when it comes to corrosion prevention. Unlike other coatings  this type tape always has a permanent and intimate contact with the surface of a substrate. The viscosity and elasticity modulus of the material are designed in such a way that the viscosity modulus provides permanent wetting characteristics hence forcing the material to flow into the pores and anomalies of the substrates whereas the elasticity modules provides the strength and elasticity of a solid.

  • Self adhesive.

  • Excellent adhesion to inner-layer

  • Worldwide reference lists.

  • Established in-ground history

  • Cold applied, No release liner.

  • Makes installation fast and easy.

  • Excellent adhesive to factory coating.



Properties

Values

Color

Black

Elongation

230%

Tensile strength

40N/cm

Peel strength to plant coating at 23℃

2.5N/cm

Peel strength to plant coating at T50℃

0.5N/cm

Water absorption

< 0.5%

Application temperature

0-60

Dielectric strength

>20kv

Storage requirement

Suitable for  storage  at ambient range up to 40  °C


Mostly our PVC pipe wrapping tape as Outerwrap Tape,maybe you will need Visco-Elastic Tape , Petroleum Grease Tape or Bitumen tape as inner tape first.
