SICHUAN FOREVER RADIATION TECHNOLOGY CO.,LTD
$8≥500Kilogram
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR |
| Min. Order: | 500 Kilogram |
| Transportation: | Ocean,Land |
| Port: | Shanghai ,Qingdao , Shenzhen |
Share:
Model No.: CRP
Brand: Forever
Origin: China
Certification: ISO
Place Of Origin: China
Classification: Hot Melt Adhesives
Main Ingredient: Epoxy
Application Field: Construction
Backing Materials: Cross linked PE backing
Repair: PE pipeline damage
Size: 150mmX150mm
Function: Anticorrosion and sealing
Color: Black
Applications: Oil gas pipelines,onshore,offshore,
Usage: Field joint coating anticorrosion
Key Point: heat shrink
Standard: DIN30672
Adhesive: Hot melt adheive
| Selling Units | : | Kilogram |
| Package Type | : | Rolls+carton+pallet |
| Picture Example | : |
|
| Download | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
Forever’s Pipeline Repair Products
Forever’s Pipeline Repair Products are used to add corrosion protection and/or fillvoids in damaged coatings. A full line of products provides the flexibility to make a variety of repairs to mainline coatings, ranging from minor coating damage to holidays and exposed steel.
All of Forever’s Pipeline Repair Products offer flexibility of installation, exhibit
excellent adhesion to steel and are compatible with common pipeline coatings.
These products also remain permanently flexible and provide superior resistance to moisture infiltration, resulting in a sound corrosion protection layer.

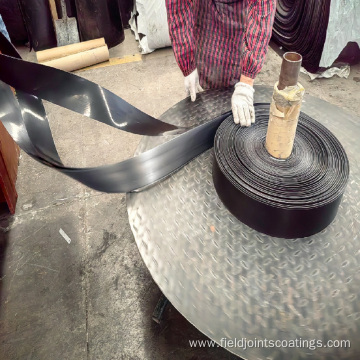

The Coating Repair Patch
Repair patch consists of an irradiated, cross-linked polyolefin sheet coated with a heatactivated adhesive. It is designed specifically for sealing and protection of damaged pipeline coatings up to 150mm x 150mm in size. The patch can be installed quickly with no special tools required. The installed patch provides a barrier to moisture and corrosion and is resistant to abrasion and shear forces during pipeline installation and while in-service.

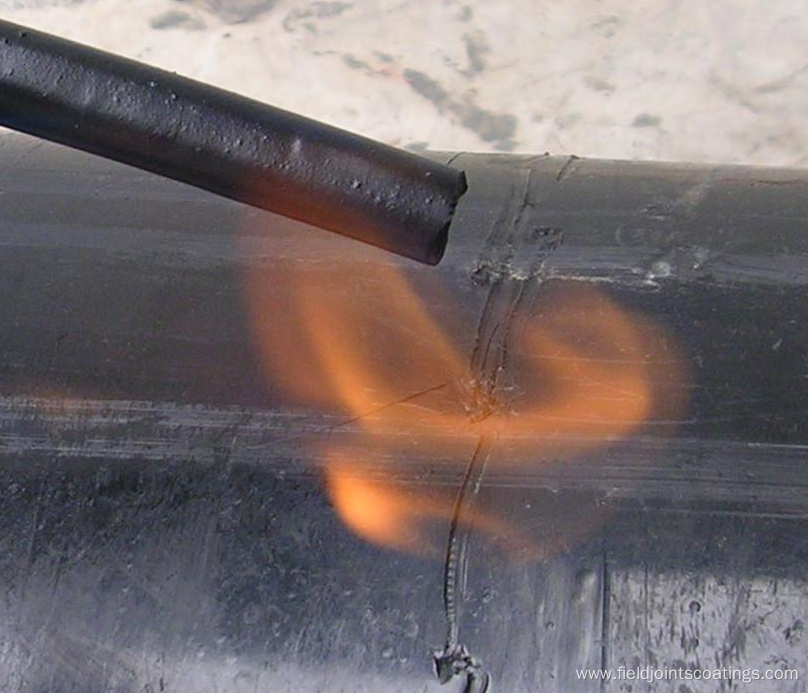

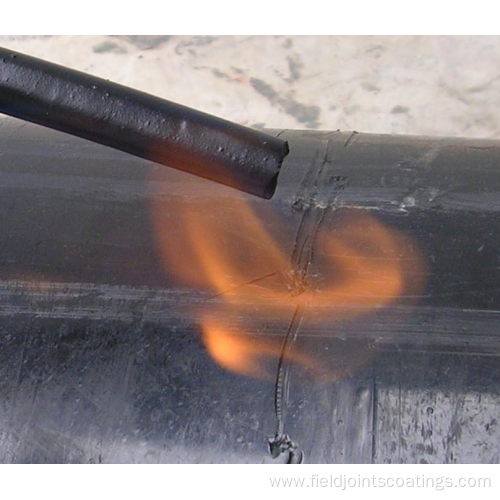

Melt Sticks
Melt Sticks are heat-activated adhesives supplied as a rod for ease of application.
They are ideal for small coating repairs ranging from superficial damage to holidays and cracks up to 10mm x 10mm. Melt sticks may also be used as a filler material below Coating Repair Patches.
Mastic Filler
Mastic Filler is used to fill larger voids and deep crevices in damaged coatings prior to the application of Forever’s Repair Patches.
Note: For damage greater than 150mm x 150mm, a new sleeve is recommended.
Softening point ASTM E28 ℃ 120 Lap shear @23℃ EN12068 N/cm2 450 Lap shear @80℃ EN12068 N/cm2 25 Specific gravity ASTM D792 g/cm3 95 Tensile strength ASTM D638 N/cm 120 Elongation ASTM D638 % 625 Hardness ASTM D2240 Shore D 55 Abrasion resistance ASTM D 1044 Mg 35 Volume resistance ASTM D257 Ohm-cm 1017 Dielectricvoltage breakdown ASTM D149 Kv/mm 30 Total thickness ASTM D1000 Mm ≥2.5mm Operation temperature ˚C up to 80˚C Max preheat temperature ˚F 200 ~ 210˚F Impact EN12068 J >15 Indentation EN12068 mm 0.1 Peel adhesion ASTM D1000 N/cm 120 Peel adhesion EN12068 N/cm >140 Cathodic disbondment ASTM G8 MM 14 Water absorption ASTM D 570 % 0.05 Low Temp.flexbility ASTM D2671-C ℃(℉) >-32(-26) Backing thickness Mm(mil) 0.8,1.0,1.2,1.4 Adhesive thickness Mm(mil) 1.0,1.2,1 .3,1.5
Sichuan Forever main products has Heat Shrinkable Sleeves, Pipe Repair Material,Liquid Epoxy Coatings,Visco-Elastic Coating Materials,Cold-Applied Polymeric Tape and other Wrapping Materials Application Tooling.
