SICHUAN FOREVER RADIATION TECHNOLOGY CO.,LTD
$3≥100Roll
| Payment Type: | T/T,L/C |
| Incoterm: | CFR,CIF,FOB,EXW |
| Min. Order: | 100 Roll |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shanghai,Qingdao,Shenzhen |
Share:
Brand: Forever
Origin: China
Certification: ISO 9001,HSE 45001
Place Of Origin: China
Adhesive: Rubber
Single-sided: Single Sided
Glue Type: Pressure Sensitive
Pattern Printing: No Printing
Material: Pe
Characteristic: Waterproof
UV Resistant Tape thickness : 15 mils(0.38 mm),20 mils (0.50 mm)25 mils (0.635 mm) 30mils(0.762mm)
UV Resistant Tape Width: 1" (25 mm), 2" (50 mm), 4" (100 mm), 6"(150 mm),9’’(230 mm)12 ‘’(300 mm)
UV Resistant Tape Core Size: 1.5" (38 mm), 3" (75 mm)
UV Resistant Tape Standard: ISO21809-3,ASTM D 1000
| Selling Units | : | Roll |
| Package Type | : | Export Carton |
The file is encrypted. Please fill in the following information to continue accessing it

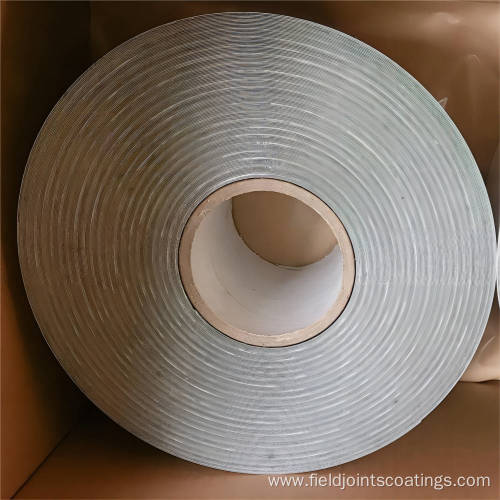

UV Resistant Outer Layer Tape
The adhesive layer is attached to the polyethylene film backing through thermal compounding. The anti corrosion system is comprised of primer, anti corrosion adhesive tape (inner tape) and protective tape (outer tape)
The outer wrap tape always called Mechanical tape,outer tape,outer wrap tape,outer layer tape,Outerwrap Tape.The backing is more thicker with a few adhesive .The color is White.
UV Resistant Outer Layer tape is one speical material for corrosion protection of Oil, Gas, Petrochemical, and Waste Water underground or overhead pipelines. The outer-layer tape backing shall be compounded so that it will be resistance to outdoor weathering.
It also provide protection to the inner layer from damage during storage, transportation, installation and throughout the lifetime of the pipeline.
High density polyethylene as backing layer and butyl rubber,synthetic resins as adhesive layer.
Properties Unit Test Method Series No.& Values T200/15 T200/20 T200/25 T200/30 Total Thickness mm ASTM D1000 0.38 0.51 0.64 0.75 Backing Thickness mm ASTM D1000 0.28 0.33 0.38 0.45 Adhesive Thickness mm ASTM D1000 0.10 0.18 0.26 0.30 Tensile Strength N/cm ASTM D1000 ＞60 ＞60 ＞60 ＞60 Elongation % ASTM D1000 ＞550 ＞550 ＞550 ＞550 Adhesion Strength To P.E Lining N/cm ASTM D1000 5 5 5 5 Dielectric Breakdown Kv ASTM D1000 35 35 35 35 Insulation Resistance Ω.cm ASTM D257 ＞1012 ＞1012 ＞1012 ＞1012 Water Vapor Transmission perms ASTM E96 ＜0.13 ＜0.13 ＜0.13 ＜0.13 Water Absorption % ASTM D570 ＜0.05 ＜0.05 ＜0.05 ＜0.05 Recommended application temperature ℃ -- -5 to +50℃ Max temperature ℃ -- -40 to +85℃
Sichuan Forever main products has Heat Shrinkable Sleeves, Pipe Repair Material,Liquid Epoxy Coatings,Visco-Elastic Coating Materials,Cold-Applied Polymeric Tape and other Wrapping Materials Application Tooling.
