Model No.: Wrapid
Brand: Forever
Origin: China
Certification: ISO
Place Of Origin: China
Grade: Industrial Grade
Operate Temperature: HTPL 65
Thickness: 2.0mm,2.2mm,2.5mm
HSS Width: 300mm,350mm,450mm,500mm
Type: type with closure patch
Usage: Field joint coating anticorrosion
Color: Black
Applications: Oil gas pipelines,onshore,offshore
Key Point: heat shrink
Backing Materials: Cross linked PE backing
Standard: DIN30672
| Selling Units | : | Roll |
| Package Type | : | Rolls+carton+pallet |
| Picture Example | : |
|
| Download | : |
|
The file is encrypted. Please fill in the following information to continue accessing it

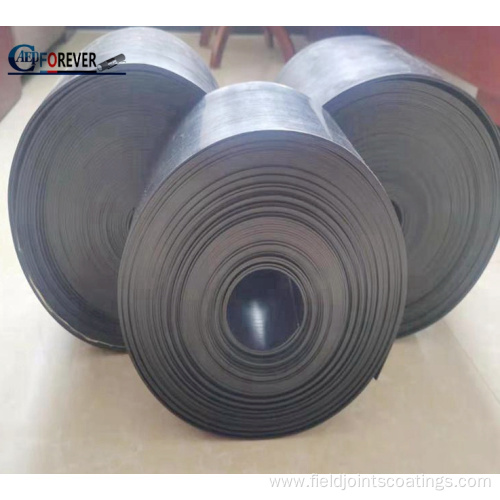

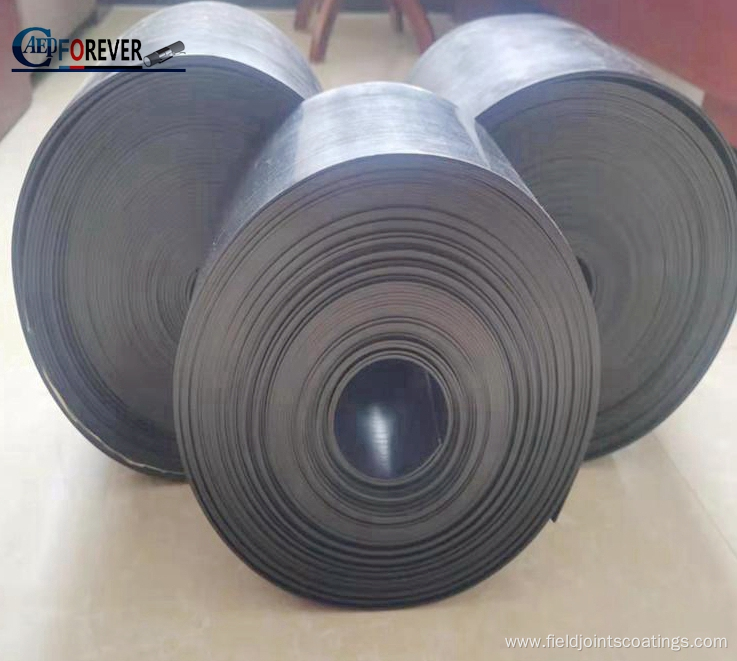

Heat Shrinkable Wrapid Tape is a reliable and cost-effective solution for protecting steel pipelines from corrosion and other forms of damage. Its ease of use, versatility, and superior performance make it a popular choice for pipeline operators and contractors around the world.
Wrapid Tape designed for corrosion protection of buried and exposed steel pipelines, especially for pipelines, fittings, bends, elbows and other irregular configurations. Wrapid Tape is made of three layers, namely the outer layer (backing material) is a cross-linked polyolefin backing; the middle layer is high performance heat melting adhesive, polyethylene and fusion bonded epoxy The two-layer tape bears no primer. Upon the application of heat, Wrapid Tape shrinks down to fully encapsulate the protected substrate.
The product is packaged in convenient rolls with various widths protect and repair pipelines, fittings, bends, elbows and other irregular configurations.
Cross-linked backing provides superior abrasion, mechanical and chemical attack resistance.
High performance adhesive provides excellent resistance to Cathodic
Disbondment to ensure long-term corrosion protection
Width: 50mm、100mm、150mm、200mm、250mm、300mm、350mm
length: 25m、30m，
The Size can be ordered according to customers’ demands .
Sichuan Forever main products has Heat Shrinkable Sleeves, Pipe Repair Material,Liquid Epoxy Coatings,Visco-Elastic Coating Materials,Cold-Applied Polymeric Tape and other Wrapping Materials Application Tooling.
| Width deviation (max) | ±10% width or 0.25 in.(6mm), Whichever is smaller | AWWAC216-5.3.1 |
| Thickness (min) | 1.8mm 2.0mm 2.5mm | AWWAC216-5.3.2 |
| Water-vapour transmission (max) | 0.05g/h/㎡ | ASTM E96 |
| Dielectric stength | 400 V/mil(15 V/um) | ASTM D149 |
| Volume resistitvity | 1014 ohm-cm | ASTM D257 |
| Adhesion to steel | 15 lb/in.width (25 N/cm) | ASTM D1000 |
| Lap shear | 12 psi | ASTM D1002 |
| Heat shock | No visual cracking,flowing,or dripping | AWWAC216-5.3.8 |
| Tensile strength | 2200 psi | ASTM D638 |
| Elongation | 400% | ASTM D638 |
| Impact resistance | 25 in.-lb(282cm-N) | ASTM G14 |
