SICHUAN FOREVER RADIATION TECHNOLOGY CO.,LTD
$10≥100Roll
| Payment Type: | T/T,L/C |
| Incoterm: | FOB,CFR,CIF,EXW |
| Min. Order: | 100 Roll |
| Transportation: | Ocean,Air,Land |
| Port: | Shanghai,Qingdao,Shenzhen |
Share:
Model No.: HSS
Brand: Forever
Origin: China Sichuan
Certification: ISO 9001, 14001, 18000
Place Of Origin: China
Plastic Molding Process Type: Extruding
Processing Service: Moulding, Cutting
Key Point: heat shrink
Operate Temperature: HTPL 80
HSS Width: 300mm,350mm,450mm,500mm
Thickness: 2.0mm,2.2mm,2.5mm
Layer: 3PE
Color: Black
Type: open type with closure patch
Applications: Oil gas pipelines,onshore,offshore
Usage: Field joint coating anticorrosion
Backing Materials: Cross linked PE backing
| Selling Units | : | Roll |
| Package Type | : | Plastic bag + carton + Pallet |
| Picture Example | : |
|
The file is encrypted. Please fill in the following information to continue accessing it

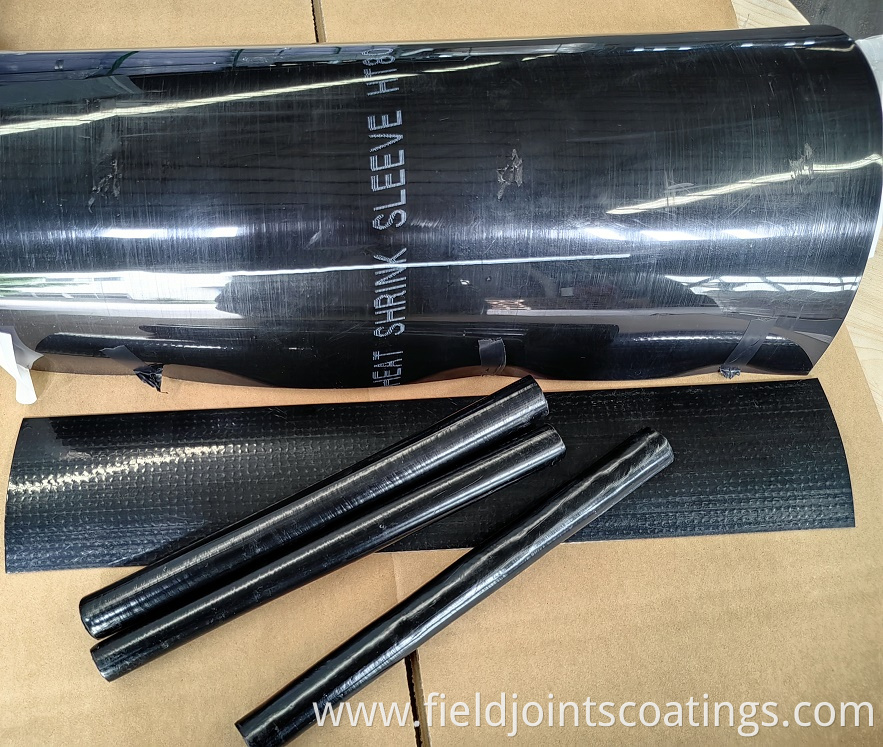

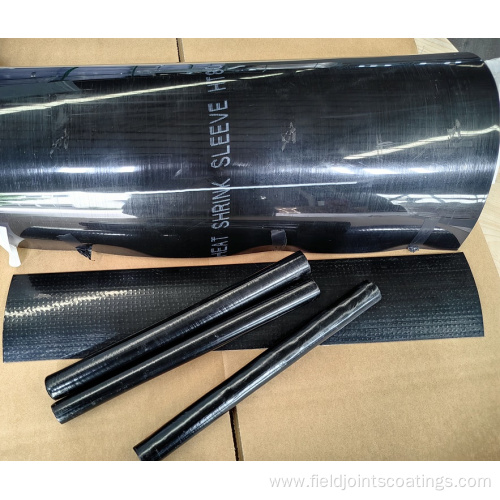

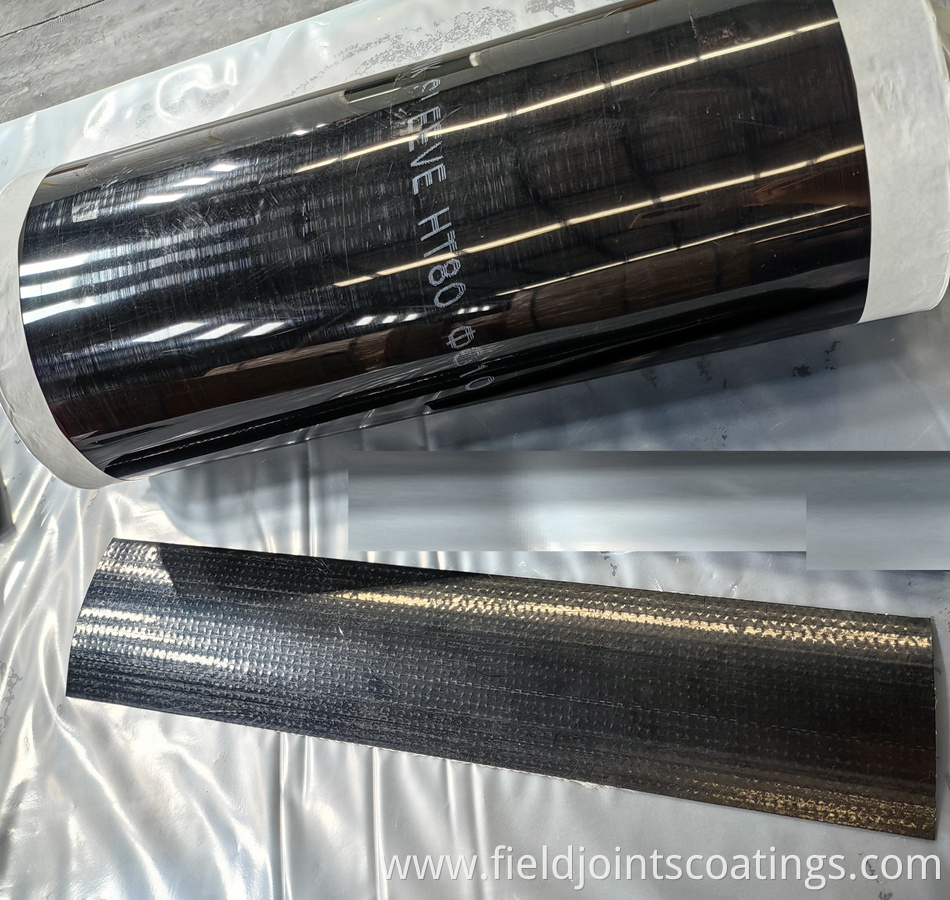

WSS Heat Shrinkable Wrappid Sleeves
Heat Shrinkable Wrappid Sleeves is designed for corrosion protection of girth weld joint of buried and exposed steel pipes, especially for 3-layer coated oil and gas pipeline. Construction: 3LPE-Three layer system
First layer: Liquid Epoxy Primer, solvent-free two-component.
Second layer: High shear strength hot-melt copolymer adhesive.
Third layer: Radiation cross-linked, high density polyethylene backing.
Heat Shrinkable Sleeves covered 3LPE Heat Shrink Sleeves，2PE Heat Shrink Tape，3LPP Wrap Around Sleeve HDD Heat Shrink Wrap Sleeves,Shrinkable Tape Closure Patch
During installation, the epoxy primer is applied to the prepared pipe surface and the heat-shrinkable sleeve is immediately wrapped around the joint over the wet or dry epoxy. Heat is then applied to the sleeve which shrinks to form a tight fit around the joint. While curing, the epoxy forms strong mechanical and chemical bonds to the pipe surface & to the copolymer adhesive layer. The radiation cross-linked outer layer forms a tough barrier against mechanical damage and moisture transmission.
Excellent multifunctional adhesive allows for lower installation pre-heat temperature and super bonding to PE, PP and FBE, offer fully resistant to shear forces induced by soil and thermal movements.
Superior cathodic disbondment and hot water immersion resistance offers the optimum barrier long-term protection against corrosion.
Saves time & cost by lower preheat temperature, wet epoxy primer application is ok.
Order Choice:
HST 60
Max operating temperature 60℃ 85℃ （185℉） Compatible line coatings PE, FBE, PP PE, FBE, PP Min. Preheat temperature 65℃ 85℃（185℉） Recommended pipe preparation Sa2.5, St3.0 Sa2.5, St3.0
Technical Data Sheet:
Item Test Method Typical Value HST 80 Radiation crosslinking PE Backing Thickness of PE backing ASTM D 1000 1.4mm Density ASTM D792 ≥0.95 gm/cc Tensile strength ASTM D 638 3200psi (22MPa) Elongation ASTM D 638 550% Thermal ageing 1) 150°C 21d elongation 2) Tmax +20°C 100d E100/E70 ASTM D 638 EN 12068 420% 1.08 Hardness, Shore D ASTM D 2240 55 Shrink force ASTM D 638, 150°C (302°F) 43psi Dielectric strength at 23°C ASTMD 149 825volts/(33KV/mm) Moisture absorption ASTM D 570 0.05% Hot Melt Adhesive Sleeve adhesive thickness - 1.7 mm Softening point ASTM E 28 125°C (257°F) Lap shear ASTM D 1002 EN 12068, @ 10 mm (0.40")/min. 435psi (3.00N/mm2) @23°C (73°F) 50psi (0.35N/mm2) @80°C (176°F) Installed Sleeve Peel to @23°C @T80°C ASTM D 1000 113N/cm 15N/cm Peel Strength of installed sleeve at 80°C (pull rate of 10 mm/min) to pipe surface (steel) to factory coating (PE coating) EN 12068 3N/cm 3N/cm Cathodic disbandment ASTM G 42, 30 days EN12068 Class C @23°C @80° 8mm @ 65°C (149°F) 6mm 10mm Moisture Vapor Transmission of sleeve at 38°C, 90 % RH ASTM E-398 0.06gm/24 hrs/100 sq.in Soil Stress Creep Resistance of installed sleeve at 80°C TP-206 0.08 inch after 24 hours Hot water immersion ASTM D 870, 120 days @Tmax no delamination no blisters or water ingress Resistance to thermal ageing(100d/100°C) Peel strength layer to layer P100/PT Peel strength to pipe surface P100/PT EN 12068, Class C 80 3.3 3.7primer Low temperature flexibility ASTM D 2671-C -25°C (-13°F) Impact resistance ASTM G 14 EN 12068, class C 96 in-lbs >15J no holiday Penetration resistance ASTM G 17, EN 12068, Class C no holidays @10KV >0.6mm @ 80°C(176°F) Holiday detection at 5 kV/ mm + 5 kV EN 12068 ,Class C no holiday Ultraviolet irradiation resistance -ratio of -tape strength -elongation at break EN 12068 – Annex F 0.93 0.89 Epoxy Primer Specific Gravity @ 23℃-A -B ASTM D1963 ≥ 1.5 /＜1.0 Dry Film Thickness on steel ≥150 micron Pull off adhesion strength to steel at 23°C ASTM D4541 ≥15 MPa
Sichuan Forever Heat Shrink Sleeves :
●Cross-linked backing
Provides superior abrasion, mechanical and chemical attack resistance,great corrosion protection,
● With a separate closure.
Open type sleeves allows the product to be applied after the pipeline has been welded and cleaned.
● Jumbo Rolls
Just-in-time customized lengths allow bulk rolls to be field cut top protect any pipe size
●Widely temperature range
Meet the requirements of different pipeline operating temperatures,
50 Degree, HT60 Degree HT80 Degree
HT120 Degree HT140 Degree
