Heat Shrinkable Sleeve for 3LPE Coating Pipe

Heat Shrinkable Sleeve for 3 Layer PE Coating Pipe provide mechanical protection to the epoxy layer and

 seal onto the epoxy layer and the adjacent line coating.

The first layer of the joint coating system is a 100 % solids two component

epoxy of a minimum dry-film thickness of 150 microns when applied on the steel surface. The epoxy layer is the primary anti-corrosion barrier and

capable of corrosion protecting the steel surface on a standalone basis

Backing: > 1.0 mm

Adhesive: > 1.0 mm

Total sleeve (Backing + Adhesive): > 2.0 mm

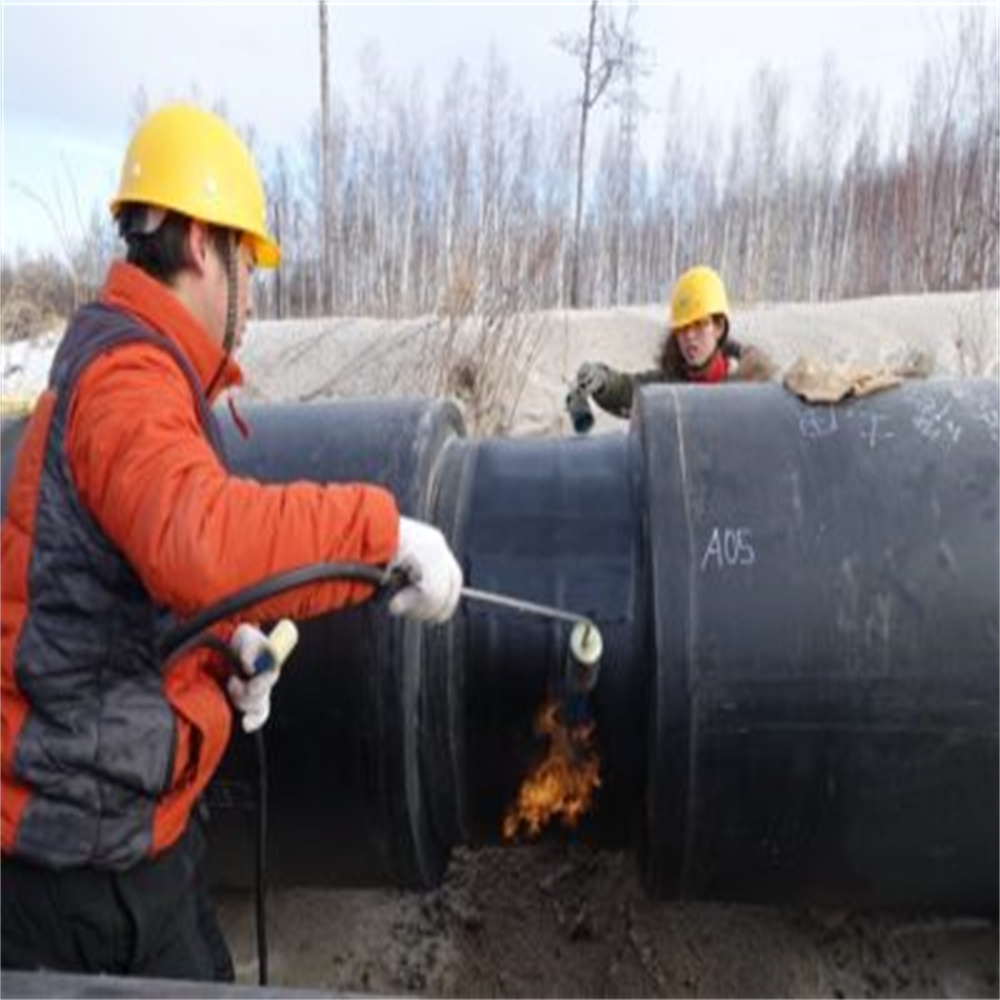

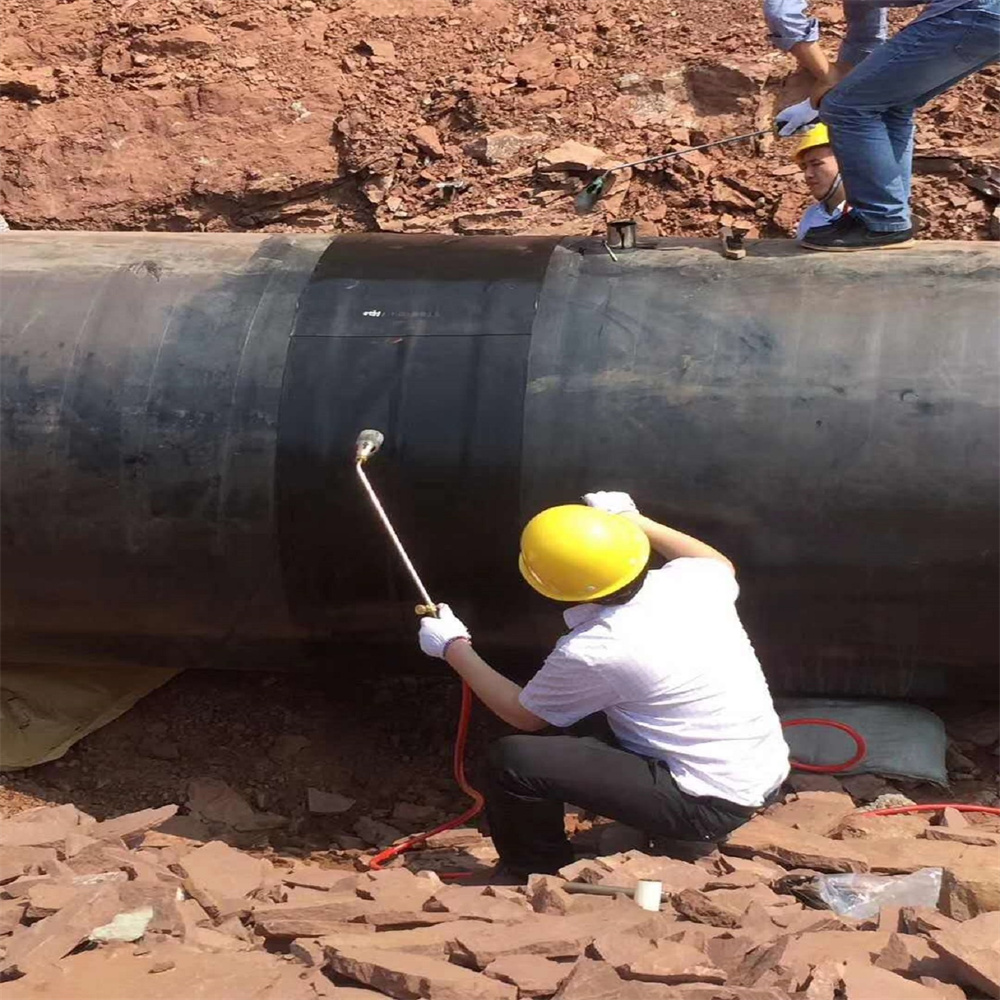

To prevent damage to the adjacent 3LPE line coating, the pre-heat of the weld area prior to epoxy application shall not exceed 80℃. After application of epoxy to joint area, the shrink sleeve shall be shrunk over the epoxied surface while the epoxy is still in a gel state and shall not require post curing of the epoxy layer prior to sleeve shrinking. This is to prevent contamination of the epoxy surface caused by direct flame.

 Sichuan Forever main products has Heat Shrinkable Sleeves, Pipe Repair Material,Liquid Epoxy Coatings,Visco-Elastic Coating Materials,Cold-Applied Polymeric Tape and other Wrapping Materials Application Tooling.

How to choose the width of HSS ?

The sleeves on the weld joint shall be wide enough so as to overlap onto the

mainline coating by a minimum of 50 mm on each side of the weld joint once

installed. The installed sleeve width shall be considered as the edge-to-edge width of the backing of the sleeve once fully shrunk down.

The sleeves on field bends may be wider and shall overlap onto each other by a minimum of 50 mm once installed.

Performance requirements for the physical, chemical and electrical properties as following :
