SICHUAN FOREVER RADIATION TECHNOLOGY CO.,LTD
$10-100 /Set/Sets
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,EXW |
| Min. Order: | 500 Set/Sets |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Shanghai,Qingdao |
Share:
Model No.: 3PE HSS
Brand: Forever
Origin: China
Certification: ISO
Place Of Origin: China
Main Ingredient: Epoxy
Application Field: Electrical Insulating Varnish
Instructions: Brush
Status: Liquid Coating
HSS Width: 300mm,350mm,450mm,500mm Thickness 2.0mm,2.2mm,2.5mm
Thickness: 2.5mm,2.0mm,1.8mm
Applications: Oil gas pipelines,onshore,offshore,
Key Point: heat shrink
Backing Materials: Cross-linked HDPE
Usage: Field joint coating anticorrosion
| Selling Units | : | Set/Sets |
| Package Type | : | package |
| Picture Example | : |
|
The file is encrypted. Please fill in the following information to continue accessing it

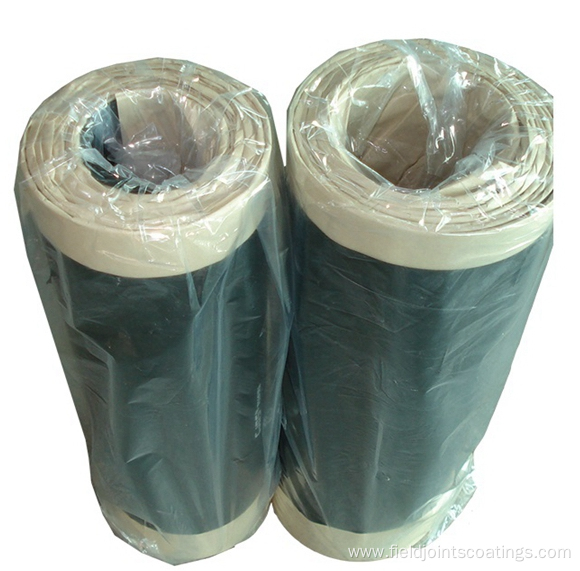

Cross-linked heat shrink wraparound Sleeves provide great corrosion protection, Superior resistance to Cathodic Disbondment and excellent durability against abrasion and chemical attack. This type HSS is effective, good performance of sealing, wide application, easy to operate and preheating temperature low (60 ℃) ,long term protection against corrosion.
heat shrink wraparound Sleeves is a wraparound sleeve with a separate closure,to fix the HSS aat overlap. Cross-linked backing provides superior abrasion, mechanical and chemical attack resistance.
Heat Shrinkable Sleeves covered 3LPE Heat Shrink Sleeves，2PE Heat Shrink Tape，3LPP Wrap Around Sleeve
HDD Heat Shrink Wrap Sleeves,Shrinkable Tape Closure Patch
Cross-linked heat shrink wraparound sleeves has three layers, The first coated on steel pipe lyer is two-components Epoxy Primer ; the second layer is made of hot melt adhesive ; the third layer is modified radiation crossing linking polyethylene backing.
| No. | Property | Unit | Test Result | Test Method | |
| PE Backing Layer | |||||
| 1 | PE Backing Layer Thickness, at 23 ℃ | mm | 0.8/1.2/1.5 | ASTM D 1000- 17 | |
| 2 | Tensile Strength (50mm/min), at 23 ℃ | PSI | 3200 | ASTM D638-22 | |
| 3 | Elongation at Break (50mm/min), at 23 ℃ | % | 550 | ASTM D638-22 | |
| 4 | Dielectric Strength, at 23 ℃ | KV/mm | 35 | ASTM D 149-20 | |
| 6 | Linear Thermal Shrinkage | % | 35 | ASTM D2732- 14 | |
| Adhesive Layer | |||||
| 1 | Adhesive Layer Thickness, at 23 ℃ |
mm | 1.00/1.30 | ASTM D 1000- 17 | |
| 2 | Ring and Ball Softening Point | ℃ | 120 | ASTM E28- 18 | |
| 3 | Adhesive Lap Joint Shear Strength | PSI | 600 | ASTM D 1002- 10 | |
| Heat Shrinkable Sleeves Coatings Physical Properties | |||||
| 1 | Impact Resistance, at 23℃ | | ≥15 | 19.6 | EN 12068:1999 |
| 2 | Shore Hardness, at 23℃ | D | ≥50 | 55 | ASTM D2240- 15 |
| 3 | Peel strength (10mm/min), to PE ° | N/cm | ≥10.0 | 110 | DIN 30672-2000 |
| 4 | Cathodic Disbondment 30d, at 60℃ | mm | ≤25 | 12 | ASTM G42- 11 |
