SICHUAN FOREVER RADIATION TECHNOLOGY CO.,LTD
Model No.: heat shrink sleeves
Brand: Forever
Origin: China
Certification: ISO
Place Of Origin: China
Plastic Molding Process Type: Extruding
Processing Service: Moulding, Cutting
Operate Temperature: HTPL 65
HSS Width: 300mm,350mm,450mm,500mm HSS width 300mm,350mm,450mm,500mm Thickness 2.0mm,2.2mm,2.5mm
Type: open type with closure pa
Thickness: 2.0mm,2.2mm,2.5mm
Color: Black
Layer: 3PE
Applications: Oil gas pipelines,onshore,offshore,
Usage: Field joint coating anticorrosion
Backing Materials: Cross linked PE backing
Key Point: heat shrink
| Selling Units | : | Roll |
| Package Type | : | Rolls+carton+pallet |
| Picture Example | : |
|
| Download | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
Field joint coating failure has been known for site of corrosion damage in many gas transmission pipelines. The unfriendly environment for coating application in the field has been regarded as a cause of coating failure. our heat shrink wrap coating sleeves can solve coating failure mechanism problem.

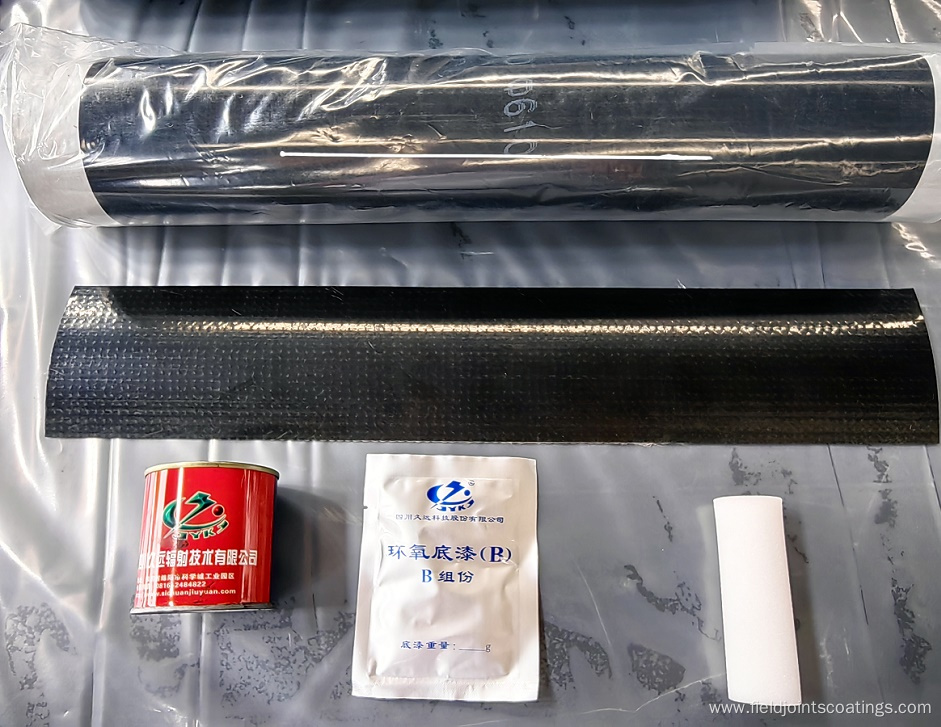

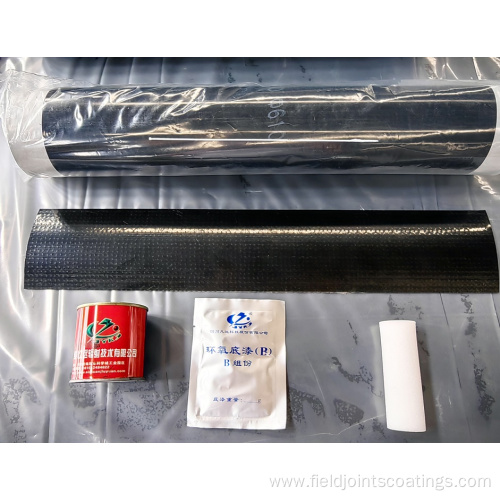

Forever Heat Shrink Tape consists of a crosslinked polyolefin backing, coated with a protective, heat active anti-corrosion adhesive which effectively bonds to steel substrates and common pipeline coatings including polyethylene and fusion bonded epoxy.
The heat shrink tape products are designed to offer superior protection on bends, fittings, reducers and other pipe structures where a typical Caepforever product cannot be applied.

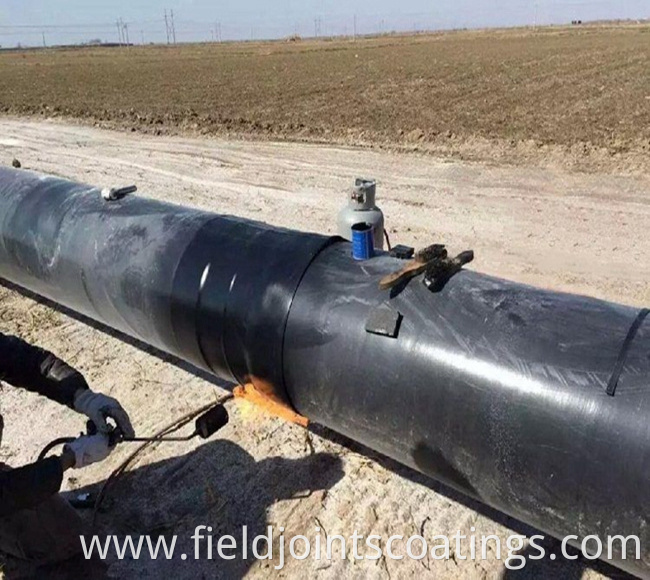

Cross-linked Wrap-around Heat Shrinkable Sleeve on the weld joint shall be long enough for 24” OD pipe so as to overlap onto the mainline coating by a minimum on each side of the weld joint.
The width of Heat Shrinkable Sleeves shall be 450mm
The corrosion Coating is a wrap-around Heat Shrinkable Sleeve, black in color and shall be suitable for an operating temperature of 140ºF in wet conditions.
Sleeve coating
The inner surface of the sleeves shall be coated with a controlled thickness of an adhesive which in combination with the modified Epoxy Primer, will bond to and seal to the steel pipe and common yard applied medium temperature yard coatings, such as epoxy.
|
|
| Test standard | Unit | 3PE 65 |
| Adhesive | Softening point | ASTM E28 | ℃(℉) | 95 |
|
| Lap shear @23℃ | EN12068 | N/cm2 | 450 |
|
| Lap shear @23℃ | EN12068 | N/cm2 | 25 |
| Backing | Specific gravity | ASTM D792 | g/cm3 | 95 |
|
| Tensile strength | ASTM D638 | MPa (psl) | 24 |
|
| Elongation | ASTM D638 | % | 425 |
|
| Hardness | ASTM D2240 | Shore D | 55 |
|
| Abrasion resistance | ASTM D 1044 | Mg | 35 |
|
| Volume resistance | ASTM D257 | Ohm-cm | 1017 |
|
| Dielectricvoltage breakdown | ASTM D149 | Kv/mm | 27 |
| Sleeves | Impact | EN12068 | J | >8 |
|
| Indentation | EN12068 | mm | 0.1 |
|
| Peel adhesion | ASTM D1000 | N/cm | 120 |
|
| Peel adhesion | EN12068 | N/cm | >140 |
|
| Cathodic disbondment | ASTM G8 | Mm rad | 3 |
|
| Water absorption | ASTM D 570 | % | 0.05 |
|
| Low Temp.flexbility | ASTM D2671-C | ℃(℉) | >-32(-26) |
|
| Fully recovered T thickness |
| Mm(mil) | 1.9(77) |
|
| Fully recovered L thickness |
| Mm(mil) | 2.4(96) |
|
| Fully recovered S thickness |
| Mm(mil) | 3.0(121) |
