Brand: Forever
Origin: Sichuan, China
Certification: ISO9001, ISO 14001,OHSAS 18001
Place Of Origin: China
International Standard: ISO21809-3
Product Name : Meet ISO21809 FJC standard Heat Shrink Material Tape
Thickness: 1.8mm,2.0mm,2.2mm,2.5mm,2.7mm and 3.0mm
Width: 300 mm, 400 mm, 450 mm, 500 mm, 600 mm
Length: Base on different pipe outer diameter
| Selling Units | : | Set/Sets |
| Package Type | : | Plastic film + Box+Pallet |
| Picture Example | : |
|
The file is encrypted. Please fill in the following information to continue accessing it

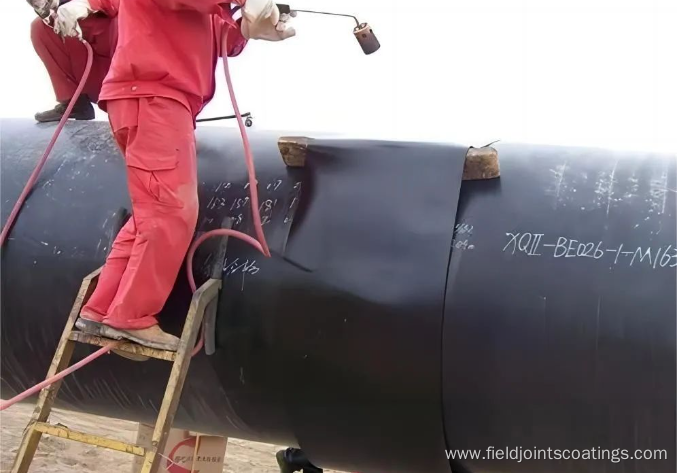

Heat shrinkable material tape, also known as anti-corrosion Heat Shrinkable Wrap-Around Sleeves of pipeline, is designed for joint coating of buried or overhead steel pipeline and reserved welding joint. It is used after connecting (welding) to form a pipeline. It is composed of a heat shrinkable tape and a fixing closure patch to form a tubular body, which is used by the coating method.Heat Shrink Sleeves structure:
l The inner layer is two-components Epoxy Primer which coated on steel pipe;
l Intermediate level is special hot melt adhesive ;
l Outer layer is modified radiation crossing linking polyethylene backing.
l 2 PE heat shrink sleeves structure without epoxy primer.
Heat shrinkable split sleeve, suitable for 2PE (pressure sensitive adhesive) and 3PE (copolymer hot melt adhesive) coatings, and also for damage Φ Repair ≥ 300mm. Our company has accumulated many years of production technology experience. It is a professional manufacturer of pipe anti-corrosion heat shrinkable opening sleeve with various strengths in China.
The heat shrinkable tape is made of radiation crosslinked high-density polyethylene substrate and special sealing adhesive. It has the characteristics of excellent mechanical damage resistance, good sealing and long service life. The heat shrinkable opening sleeve is widely used in steel pipe network engineering in petroleum, natural gas, chemical industry, urban construction and other industries to provide a long-term excellent and reliable anti-corrosion protection system for the position where the pipeline needs to be repaired for anti-corrosion.
| Color | Black |
| Standard thickness | 1.5mm,1.8mm,2.0mm,2.2mm,2.5mm,2.7mm,3.0mm,4.0mm |
| Backing material thickness | 1.0mm,1.2mm,1.5mm,1.8mm,2.0mm |
| Adhesive layer thickness | 0.8mm,1.0mm,1.2mm,1.5mm,2.0mm, |
| Standard width | 300mm,400m,450mm,500mm,550mm,600mm,700mm |
| Pipe Diameter for Sleeves | 4’’,6’’,8’’,10’’,12’’,14’’,16’’,18’’,20’’,22’’,24’’,26’’,28’’,30’’,32’’,34’’,36’’,38’’,40’’ 42’’,44’’,46’’,48’’,50’’ |
