Corrosion Resistant Heat Shrink Sleeves for PipeS Protection

Corrosion Resistant Heat Shrink Sleeves for PipeS Protection

Get Latest Price

Min. Order:	1
Transportation:	Ocean
Port:	Qingdao,Shanghai,Shenzhen

Option:

450mm

Contact Now

Product Description

Product Attributes

Model No.: 3LPE

Brand: Forever

Origin: China

Certification: ISO

Place Of Origin: China

Species: Cng

Application: Industry Fuel

Operate Temperature: HTPL 85

Width: 300mm,350mm,450mm,500mm

Thickness: 2.0mm,2.2mm,2.5mm

Type: open type with closure patch

Layer: 3PE

Color: Black

Applications: Oil gas pipelines,onshore,o

Packaging & Delivery

Package Type	:	Rolls+carton+pallet
Picture Example	:

The file is encrypted. Please fill in the following information to continue accessing it

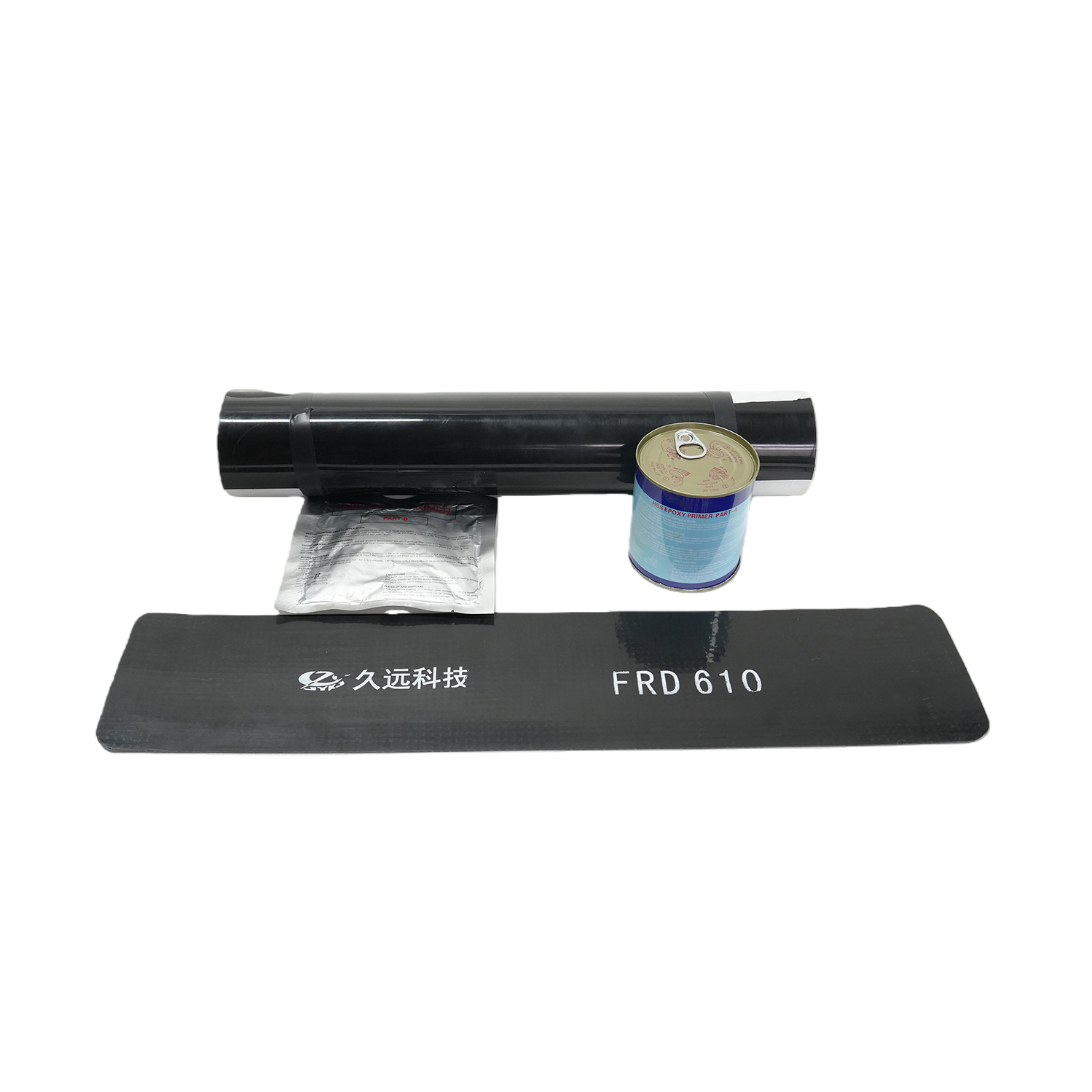

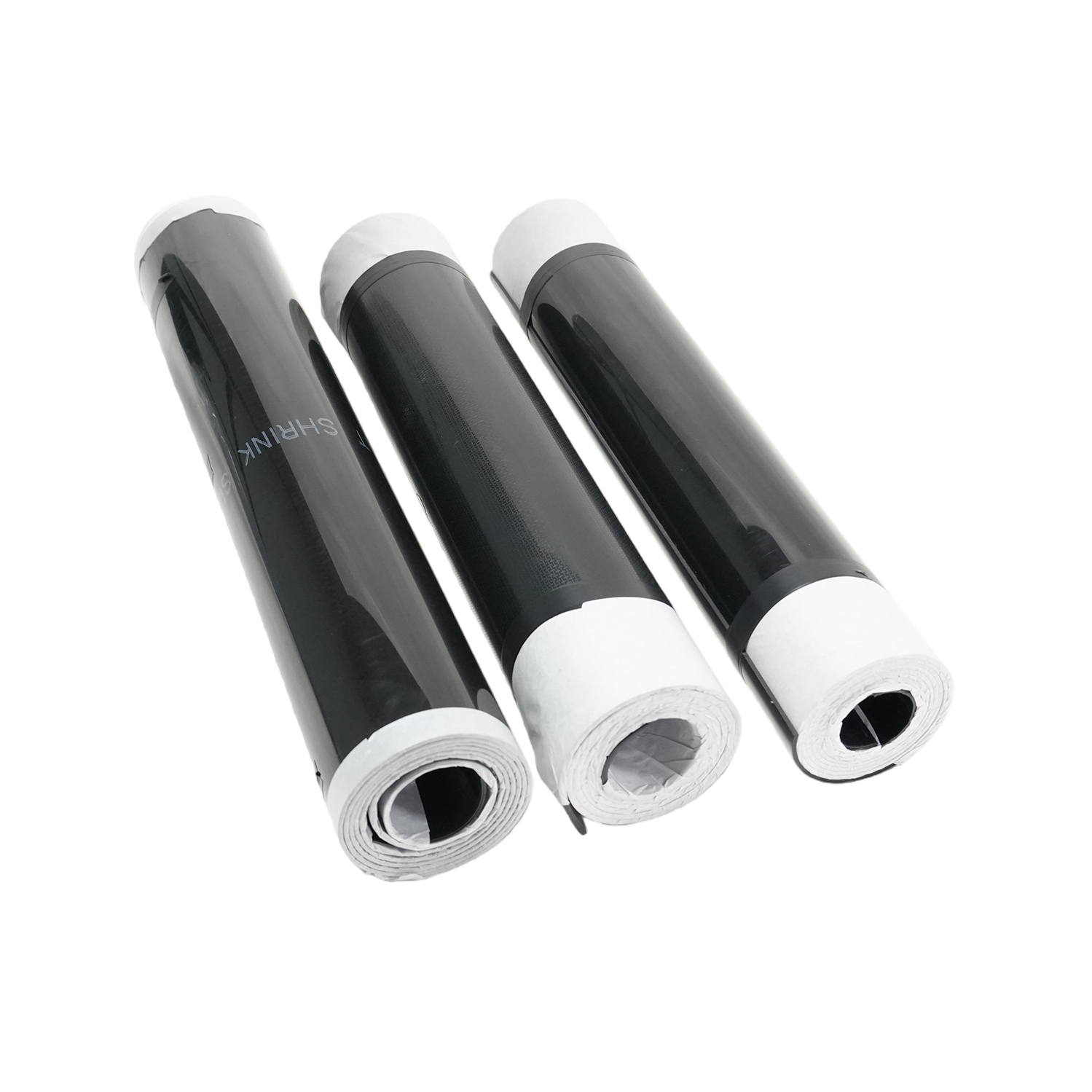

Heat dhrink sleeves HSS 2410

3PE HSS with epoxy primer



Product Description

HT80 is superior performance heat shrinkable products designed for corrosion protection on field applied girth-weld joints of buried and exposed steel pipelines operating up to 55°C

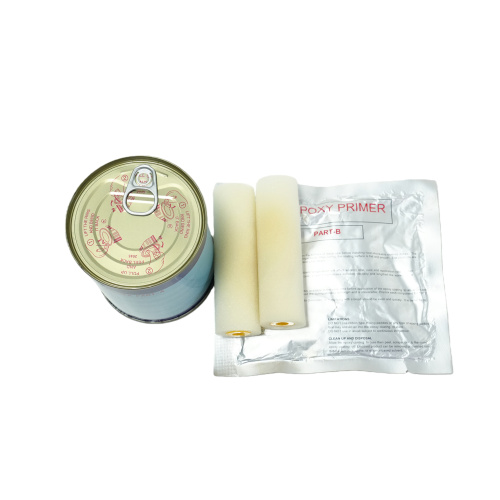

The inner layer is two-components Epoxy Primer which coated on steel pipe; Intermediate level is special hot melt adhesive ;

Outer layer is modified radiation crossing linking polyethylene backing.

3LPE 80C Heat Shrink Sleeves is developed by this Company on the basis of the original product. It is the first of the same kind in China. Currently, the product is well above the domestic anti corrosive professional standards and reaches the standard requirement of EN12068,ISO21809-3 and ASTM as well.

3LPE 80C Heat Shrink Sleeves product uses the polyethylene produced by ATOFINA of France and many other auxiliary materials as base materials. The mechanic performance targets such as indentation resistance, impact resistance and tensile strength have reached EN12068 standards. And its aging-resistance and ultraviolet rays-proof performance have met the requirements of ASTMD638 standards.

Peel strength at 10mm/min to Primer steel	≥80N/cm(at 23°C)	ISO21809
Soil stress creep resistance	≥0.067mm(at 60°C)	TP 206
Tensile strength	≥20MPa	ISO21809
