Heat shrinkable End Cap for pipe joints
Heat shrinkable End Cap for pipe joints
Heat shrinkable End Cap for pipe joints
Heat shrinkable End Cap for pipe joints
Heat shrinkable End Cap for pipe joints
Heat shrinkable End Cap for pipe joints
Heat shrinkable End Cap for pipe joints

Heat shrinkable End Cap for pipe joints

$20≥50Set/Sets

Payment Type:L/C,T/T
Incoterm:FOB,CIF,EXW
Min. Order:50 Set/Sets
Transportation:Ocean,Land
Port:Shanghai,Qingdao,Shenzhen
Product Attributes

Model No.Tubular

BrandForever

OriginChina

CertificationISO

Place Of OriginChina

GradeIndustrial Grade

Functionsealing for joints

SizeAccording to pipe dimeter

ColorBlack

ApplicationsOil gas pipelines,onshore,offshore,

Key PointHeat shrink

StandardDIN30672

AdhesiveHot melt adheive

Backing MaterialsCross linked PE backing

UsageField joint coating anticorrosion

Typeopen type with closure patch

Packaging & Delivery
Selling Units : Set/Sets
Package Type : Rolls+carton+pallet
Picture Example :
Download :

The file is encrypted. Please fill in the following information to continue accessing it

Heating adhesive surface of closure patch
heating the adhesive surface
Product Description

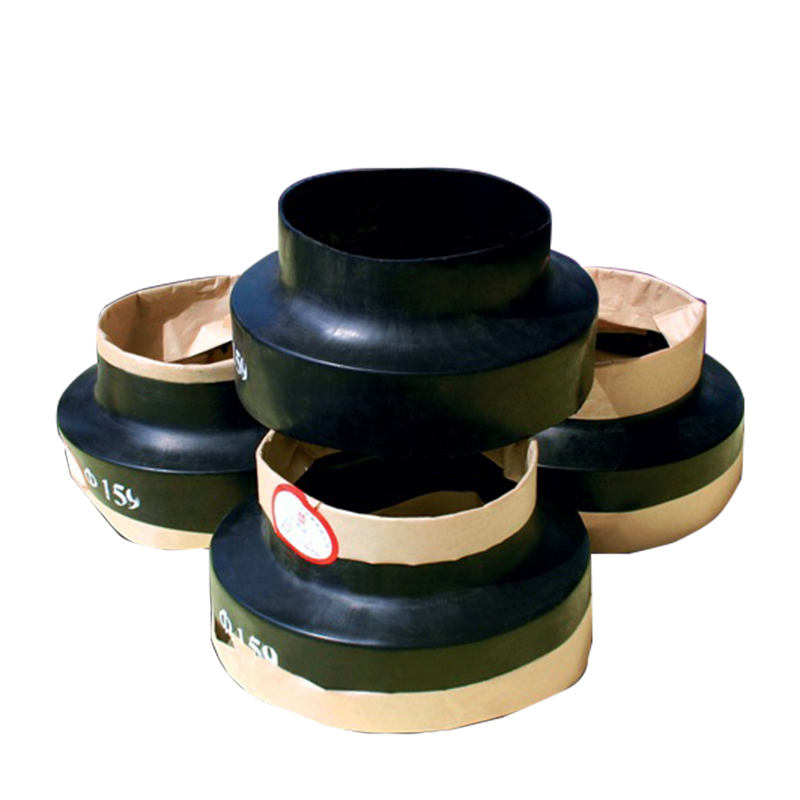

Heat-shrinkable End Cap

provide a water tight seal and prevent water access to the exposed insulation at the weld joint area

Heat-shrinkable End Cap is used for thermal insulation of pipeline joint as well as corrosion protection, watertight seal, moisture resistance at the weld joint area.

Heat shrinkable End Cap is made from a specially formulated cross-linked polymer and is fully lined with a high performance, mastic adhesive.This combination provides a high quality, reliable system for the corrosion protection .


Heat-shrinkable End Cap Features & Benefits:

Efficient and convenient in application.

It can also protect long-distance heat insulating material from damage and decay, so as to reduce' heat loss, cost of repair .

This product is characterized by chemical medium corrosion resistance and long aging resistance time, being strong to glue the relay, install simple and easy to operate

The hot-melt adhesive binds well with other anticorrosion layers, which enables it to be waterproof and airproof, and have natural-repair ability.

signed to provide a water tight seal and prevent water access to the exposed insulation at the weld joint area. Shrinks to conform to the profile of the insulated pipe Protects the insulation during storage and transportation.

Item

Unit

Technical Criteria

Test Method

  AWWAC216

Tensile Strength

Mpa

17

ASTM D638

2200 PSI

Elongation

%

600

ASTM D638

400

Hardness

Shore D

90

ASTM D2240

--

Abrasion Resistance

mg

30

ASTM D1044

--

Water Absorption

%

0.05

ASTM D570

0.05

Low temperature Flexibility

()

-30 (-22)

ASTM D2671

-30 (-22)

Peel Strength

N/cm

To Primer-coated Steel Pipe

N/cm

35

DIN30 672

8pci

To PE layer

N/cm

35

DIN30 672

8pci

Sichuan Forever main products has Heat Shrinkable Sleeves, Pipe Repair Material,Liquid Epoxy Coatings,Visco-Elastic Coating Materials,Cold-Applied Polymeric Tape and other Wrapping Materials Application Tooling.
