Reinforced Fiberglass Heat Shrink Wrap Sleeves

Reinforced Fiberglass Heat Shrink Wrap Sleeves

Name: 3PE HSS with epoxy primer
Uploaded: 2023-12-04T08:03:02+08:00
Description: 3PE HSS with epoxy primer

Get Latest Price

Min. Order:	1
Transportation:	Ocean
Port:	Shenzhen

Contact Now

Product Description

Product Attributes

Model No.: HDD

Brand: Forever

Origin: China

Certification: ISO

Materials: Reinforced Fiberglass PE backing

Adhesive: Hotmelt

Key Point: Reinforced Fiberglass

Usage: HDD-Pull Through

First Layer:: Liquid epoxy, solvent-free

Thickness: 3.05mm

Packaging & Delivery

Package Type	:	CTN
Picture Example	:

The file is encrypted. Please fill in the following information to continue accessing it

3PE HSS with epoxy primer



Product Description

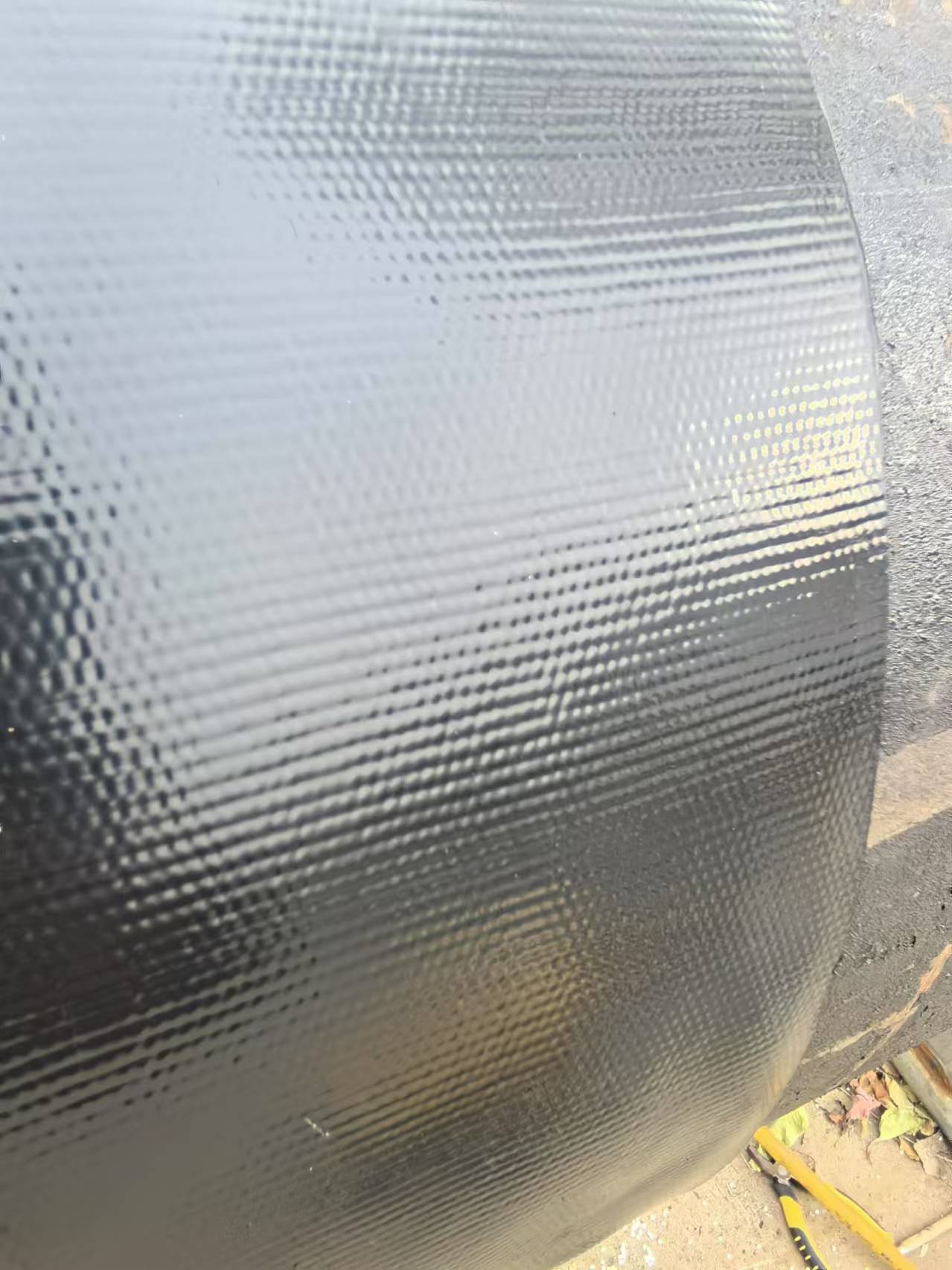

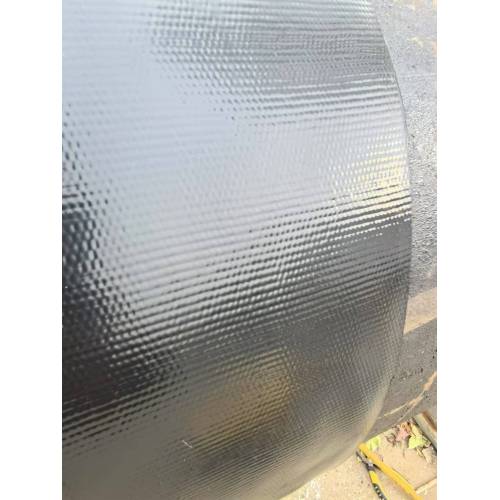

PE system is a wrap-around heat shrinkable sleeve reinforced with fiberglass.

HDDPE is designed to protect girth welds against corrosion and is the optimum joint

protection for PE coated pipes used in Horizontal Directional Drilling (HDD-Pull Through). The reinforcement gives the backing greater wear resistance.

• Additional component:

Wear cones as extra protection against pull through forces. The wear cones are built up with liquid epoxy, solvent-free two-component reinforced with fiberglass.

During installation, adhesive strips are applied onto the PE line coating, the epoxy is applied to the prepared steel pipe surface and the heat-shrinkable sleeve is immediately wrapped around the joint over the adhesive strips and the wet epoxy. Heat is then applied to the sleeve, which shrinks to form a tight fit around the joint. While curing, the epoxy forms strong mechanical and chemical bonds to the pipe surface & to the copolymer adhesive layer. The radiation cross-linked outer layer forms a tough barrier against mechanical damage and moisture transmission. Finally the two-component epoxy reinforced with fiber glass is applied over the ends of the adjacent

polyethylene coating in order to form the ultimate soil stress resistant girth weld protection.

Features:

• Highly resistant to shear and peel forces induced by soil and thermal movements.

• HDD-PE offers abrasion and wear resistance at pull-through comparable to mill coatings.

• Sleeve applied over wet epoxy – formation of strong mechanical & chemical bonds.

• Superior cathodic disbondment and hot water immersion resistance.

• Pre-attached closure patch.

• Low preheat requirements.

Construction Layer	Three-layer system
First layer: Liquid epoxy, solvent-free two-component.	Liquid epoxy, solvent-free two-component
Second layer:	High shear strength copolymer adhesive.
Usage	HDD-Pull Through
