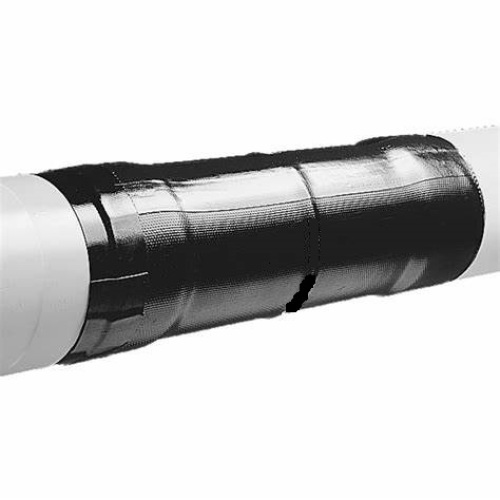

Girth-Weld Heat Shrink Pipe Sleeves for Drilled Applications

Girth-Weld Heat Shrink Pipe Sleeves for Drilled Applications

Get Latest Price

Min. Order:	1
Transportation:	Ocean
Port:	Shenzhen

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Model No.: HDD

Brand: Forever

Origin: China

Certification: ISO

Materials: reinforced with fiberglass.

System: wrap-around heat shrinkable sleeve

With: Closure patch

Wear Cone (incl. Adhesive): 3.05mm

Color: Black

Width: 450mm

Packaging & Delivery

Package Type	:	Rolls+carton+pallet
Picture Example	:

The file is encrypted. Please fill in the following information to continue accessing it

heating on the adhesive surface



Product Description

HDD - Directional Drilling Heat Shrink Sleeve

Advanced girth-weld protection for pipes used in directionally drilled applications

The HDD - Directional Drilling heat shrink sleeve is a high performance system designed to protect welded joints on PP, PE and FBE coated pipelines in directional drilling applications.

This system offers unmatched installation simplicity while delivering exceptional protection at the joints during and after the tough conditions associated with HDD activities.

This system is a wrap-around heat shrinkable sleeve reinforced with fiberglass.

It is designed to protect girth welds against corrosion and is the optimum joint protection for PE coated pipes used in directional drilling applications.

The reinforcement gives the backing greater wear resistance.

Layers of Protection

• Force-cured epoxy is applied directly to steel for maximum corrosion protection

• Primary sleeve composed of high shear strength adhesive and HDPE

heat shrinkable backing provides both corrosion and mechanical protection across the joints

• The secondary sleeve provides additional mechanical protection to

the leading edge of the primary sleeve during pull-through opera tions

Peel to Steel
