Model No.: HDD
Brand: Caepforever
Origin: China
Certification: ISO
Place Of Origin: China
Grade: Industrial Grade
Description: HDD heat shrinkable sleeves
HDD: Horizontal Directional Drilling
Usage: Crossing pipeline
Key Point: Strength heat shrink
Backing Thickness: 1.80-1.85mm
Adhesive Thickness: 1.20-1.25mm
Features: Highly resistant to shear and peel forces induced by soil and thermal movements
Advantage: abrasion and wear resistance at pull-through comparable to mill coatings.
Applications: Oil gas pipelines,onshore,offshore,
Backing Materials: Cross linked PE backing
| Selling Units | : | Set/Sets |

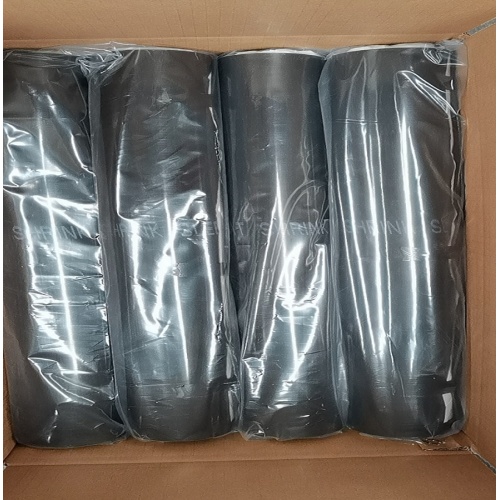

| Package Type | : | Rolls+carton+pallet |
| Picture Example | : |
|
| Download | : |
|
The file is encrypted. Please fill in the following information to continue accessing it

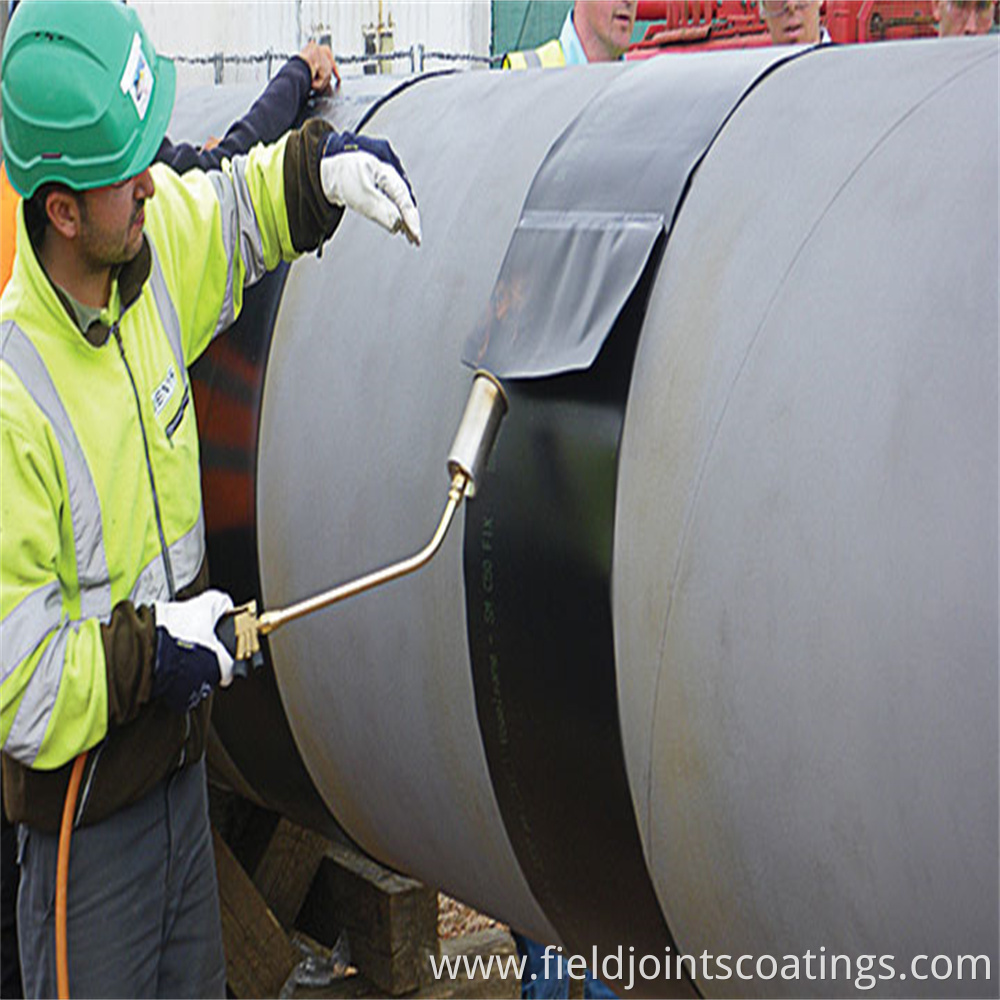

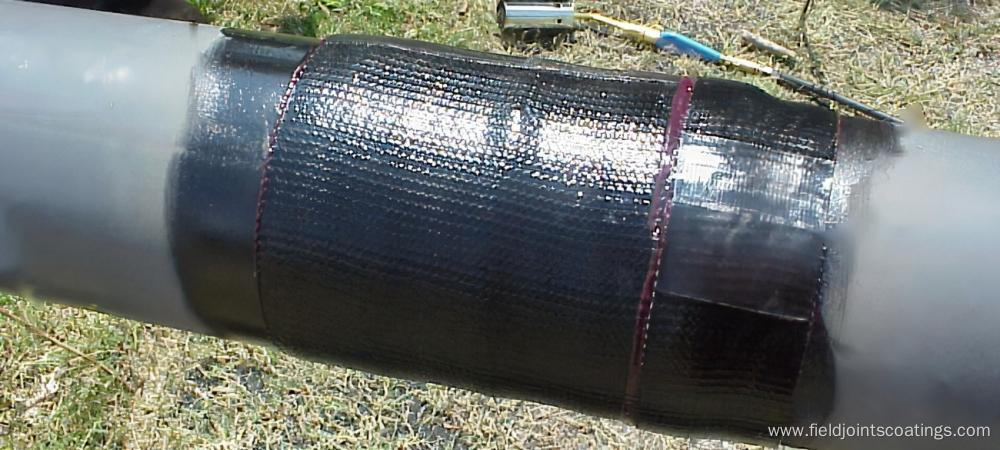

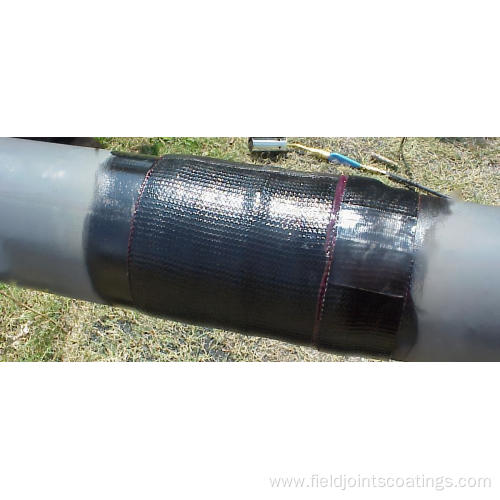

HDD Heat Shrinkable Sleeves is a wrap-around heat shrinkable sleeve reinforced with fiberglass.
HDD Heat Shrinkable Sleevesis designed to protect girth welds against corrosion and is the optimum joint protection for PE coated pipes used in directional drilling applications. The reinforcement gives the backing greater wear resistance.
The Heat Shrinkable Sleeve coating shall be capable of withstanding a maximum continuous operating temperature of 65ºC. Coating system shall withstand the Pull-through applications of Horizontal Directional Drilling (HDD) applications.
The Heat Shrinkable Sleeve shall provide mechanical protection to the epoxy layer and shall seal onto the epoxy layer and the adjacent line coating. It shall have the following minimum thickness:
Backing 1.85mm Backing fully free recovered 2.30mm
| A) Backing-Reinforced With Fiberglass | |||
| Properties | Unit | Requirement | Standard |
| Bursting Strength | N | 2350 min. | DIN 30672 |
| B) Hot Melt Adhesive | |||
| Properties | Unit | Value | Standard |
| Softening Point | ºC | 94 | ASTM - E28 |
| Lap Shear | psi | 528 @ 60ºC | ASTM D1002 |
| C) Installed Sleeve | |||
| Properties | Unit | Value | Standard |
| Peel to Steel | N/mm | 11 | ASTM D-1000 EN 12068@10mm/min. |
| Specific Coating Resistance | Ωm2 | 600000000 | DIN 30672, 100 days immersion |
| Impact resistance | In.lb | 170 | ASTM G-14 EN 12068, class C |
Sichuan Forever main products has heat Shrinkable Sleeves, Pipe Repair Material,Liquid Epoxy Coatings,Visco-Elastic Coating Materials,Cold-Applied Polymeric Tape and other Wrapping Materials Application Tooling.
